Description:
HRC45 4-blade roughing milling cutter is made of high-quality tungsten steel bars by fine grinding. The cemented carbide has good compressive strength, toughness, hardness and wear resistance; Swiss plating technology is adopted, with excellent wear resistance and lubrication to ensure the service life of the tool; Spiral design, large capacity and smooth chip removal to prevent knife sticking and reduce heat; It is easier to install and clamp with smooth handle and fine chamfer；Wide processing range, mostly used for slot processing, side processing, step surface processing, rough processing and semi-finish processing, etc.
Applicable processing materials:
Stainless steel, aluminum alloy, die steel, tool steel, carbon steel, alloy steel, cast iron, general iron materials, etc.

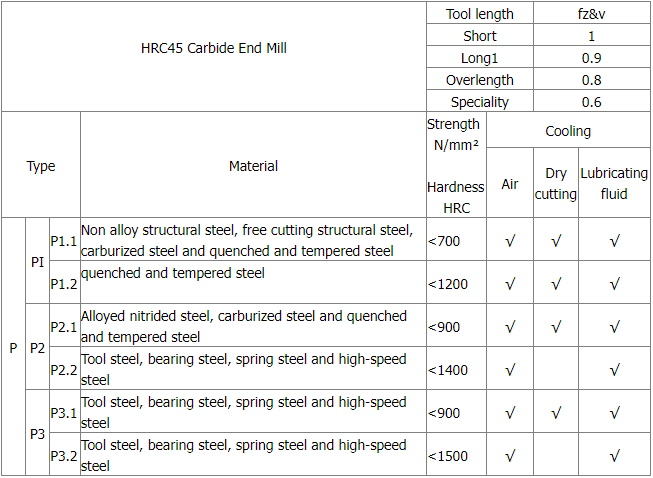

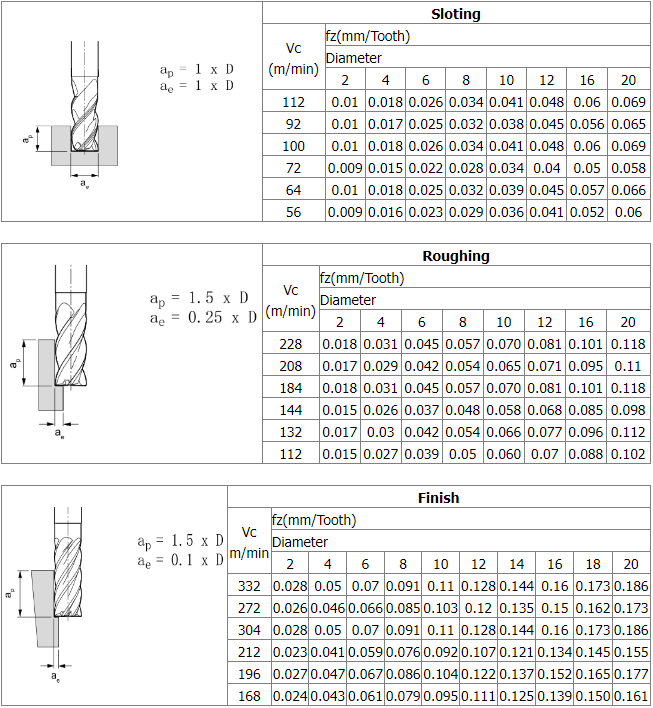

Milling parameters:
Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
