Description:
The edge adopts nano coating, with good wear resistance, stable performance, heat resistance and oxidation resistance, and no chemical reaction with the workpiece material; Excellent new edge design is adopted, with smooth surface and no easy angle collapse, giving consideration to the rigidity of the tool and chip removal performance, making the cutting and chip removal of the tool more stable; The cutter head is made by appropriate negative rake angle grinding process, and the spiral design ensures smooth chip removal to prevent sticking to the cutter, reduce heat, and improve the cutting speed; High precision thread, inclined multi chip slot design and spiral heat dissipation design, high efficiency milling, smooth chip removal, no burr; The handle chamfer layout makes it easier to clamp, the chamfer is smooth and bright, the process is excellent, the handle is round and solid, and the handle is beautiful to use.

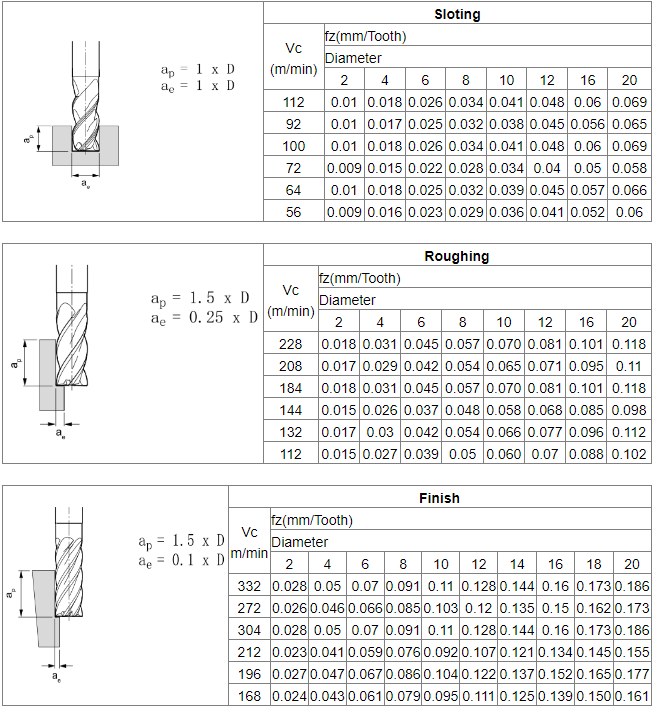

Milling parameters:
Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
