TEX Square End Mill

105

• Ultra-fine grain carbide (<0.6 μm, 12% Co)
• Balzers AP (AlCrN) coating, up to 1200°C
• Dual core design (52%/70%) for efficient chip evacuation
• 8° rake angle, 45° helix
• Unequal pitch flutes (88° / 92°) for vibration suppression

workpiece material:high temperature titanium alloy、stainless steel
Application type:Dynamic Milling 、Medium-Finishing 、Roughing
Flute type:Corner
Coating:ALCRN (Balzas AP Coating)

Product Description:
Dohre TEX Series square end mill is specifically designed for stainless steel machining, offering excellent chip evacuation, vibration control, and thermal stability.
With optimized core design and advanced AlCrN coating, TEX delivers reliable performance in dynamic milling and semi-finishing applications.

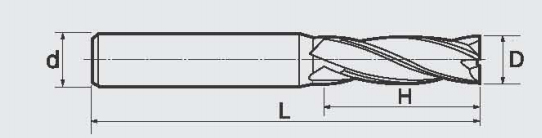

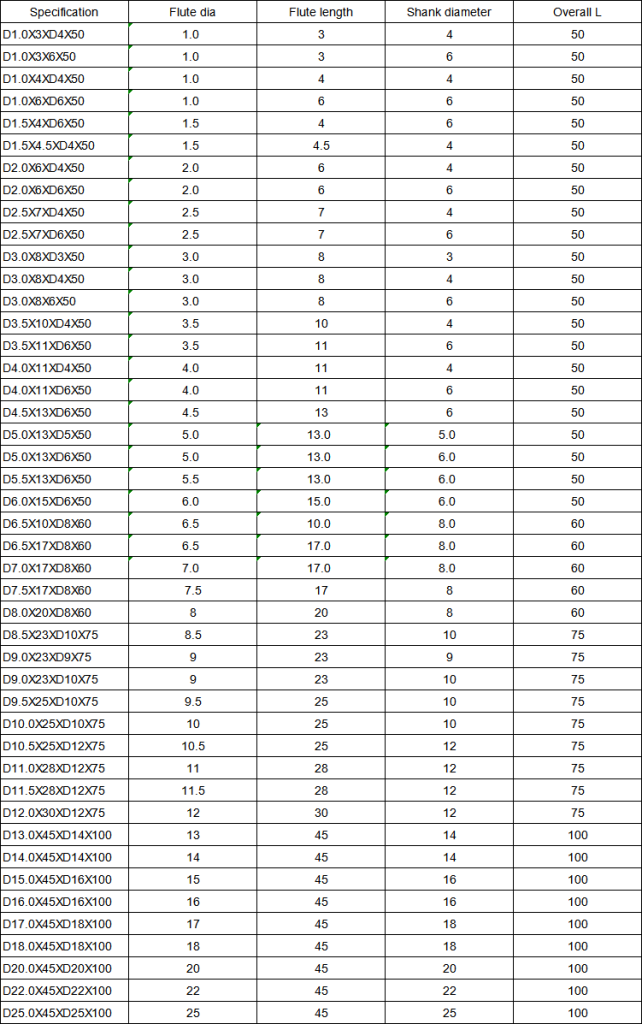

The following table lists the standard sizes of Dohre TEX series square end mill for stainless steel machining. We can also accpet custom size and shape according your request.
