Description:

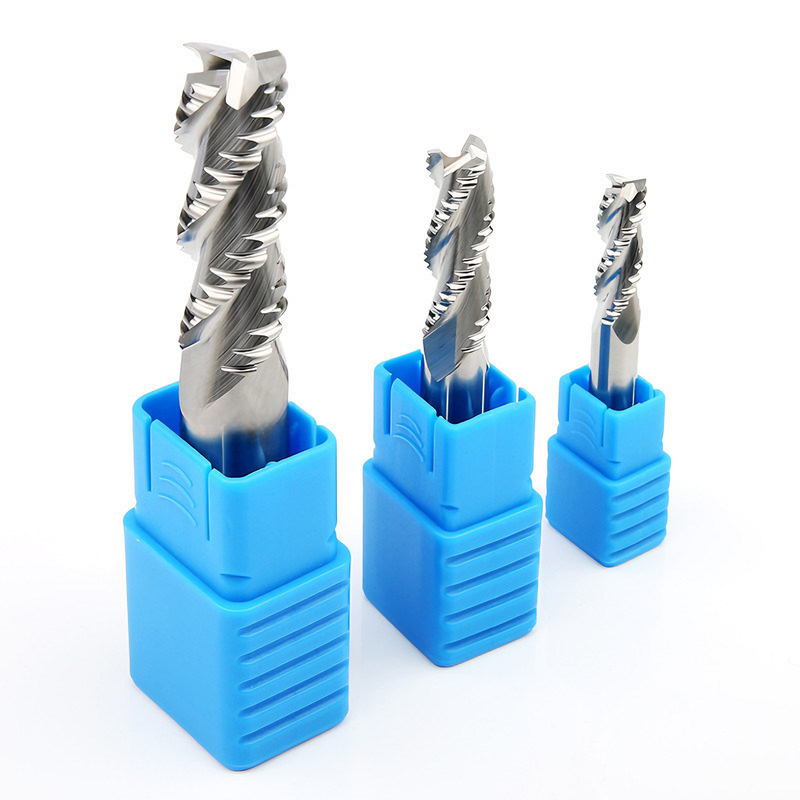

The HRC45 3 flute roughing milling cutter has a fine grinding process design, high finish, sharp and firm, smooth and smooth section without burrs; Triangular slope edge design, larger cutting volume compared with the same period of last year, realizing high feed processing, and improving efficiency by 50%; Large groove design, fast chip removal, reduce tool wear and improve tool cutting efficiency; Standard straight shank, shank diameter tolerance H6, bottom chamfer design is convenient for clamping, reducing the scratch between the tool shank and the fixture, and improving the life of the fixture.
Milling Parameters:
Note:
If the following carbide roughing end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide roughing end mill according to your needs.
Instructions:
- Before using the carbide roughing end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide roughing end mill, extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and so on. General-purpose operation slotting, rilling, profiling.
