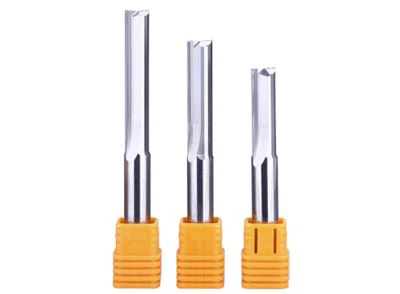

Product Name: Solid Carbide 2 Flute Straight Flute Engraving CNC Router Bits
Model Number: 2SF-450
Product Parameters:
- Brand name: NSM
- Place of origin: Guangdong of China
- Grade: NSM450
- Raw material: Original tungsten carbide
- Grain Size: Micro grain 0.6μ
- Type: Engraving cutters, CNC router bits
- Flute: 2 Flute, straight flute
- Controlling mode: Engraving machines
- Work material: Wood, Acrylic, MDF, PVC, Aluminum
Main Features:
Applicable: 2D engraving, cutting, MDF, hardwood.
Features: The tungsten steel cutter body is specifically for CNC engraving machine processing MDF material, combined with hard cutter body and advanced blade. Durable and strong.
| SHK | CED | CEL | OVL |
| 3.175 | 3.175 | 8 | 38.5 |
| 3.175 | 3.175 | 12 | 38.5 |
| 3.175 | 3.175 | 15 | 38.5 |
| 3.175 | 3.175 | 17 | 38.5 |
| 3.175 | 3.175 | 22 | 45 |
| 3.175 | 3.175 | 25 | 50 |
| 3.175 | 3.175 | 28 | 50 |
| 3.175 | 3.175 | 32 | 55 |
| 3.175 | 1 | 3 | 38.5 |
| 3.175 | 1.5 | 4 | 38.5 |
| 3.175 | 1.5 | 7 | 38.5 |
| 3.175 | 1.5 | 12 | 38.5 |
| 3.175 | 2 | 6 | 38.5 |
| 3.175 | 2 | 8 | 38.5 |
| 3.175 | 2 | 12 | 38.5 |
| 3.175 | 2 | 17 | 38.5 |
| 3.175 | 2.5 | 8 | 38.5 |
| 3.175 | 2.5 | 12 | 38.5 |
| 3.175 | 2.5 | 15 | 38.5 |
| 3.175 | 2.5 | 17 | 38.5 |
| 3.175 | 2.5 | 22 | 45 |
| 4 | 4 | 12 | 45 |
| 4 | 4 | 17 | 45 |
| 4 | 4 | 22 | 45 |
| 4 | 4 | 25 | 45 |
| 4 | 4 | 28 | 50 |
| 4 | 4 | 32 | 55 |
| 4 | 4 | 42 | 65 |
| 6 | 6 | 17 | 50 |
| 6 | 6 | 22 | 50 |
| 6 | 6 | 25 | 50 |
| 6 | 6 | 28 | 60 |
| 6 | 6 | 32 | 60 |
| 6 | 6 | 42 | 70 |
| 6 | 6 | 52 | 80 |
| 6 | 6 | 62 | 100 |
| 8 | 8 | 25 | 60 |
| 8 | 8 | 32 | 60 |
| 8 | 8 | 42 | 75 |
| 8 | 8 | 52 | 90 |
| 8 | 8 | 62 | 100 |
| 10 | 10 | 32 | 75 |
| 10 | 10 | 42 | 80 |
| 10 | 10 | 52 | 100 |
| 10 | 10 | 62 | 110 |
