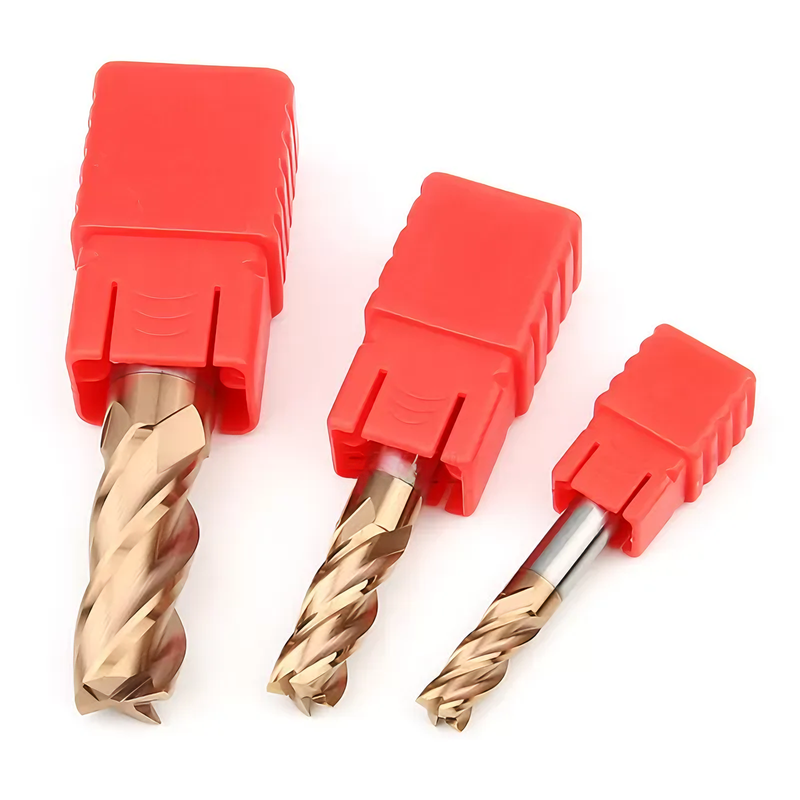

HRC55 Carbide Flat End Mill 1mm 4F 4 Flutes 2mm 55 HRC Overall Alloy Milling Cutter Coated
Description:
Hard alloy flat end mill has high processing efficiency. It is processed with ultra-fine grain size grinding wheel, and there is no grinding wheel trace on the surface of the milling cutter, even if the blade is magnified 200 times, there is no slight defect; The blade has strong versatility, and hard materials, steel parts and cast iron can be processed with high cost performance,; With new coating and new substrate technology, it has high hardness, abrasion resistance and more stable processing; Smooth chip removal, stable cutting, good chip breaking effect, and rapid improvement of processing efficiency; The blade is sharper and more shock resistant, shorter, smooth and not sticky, and not easy to collapse.

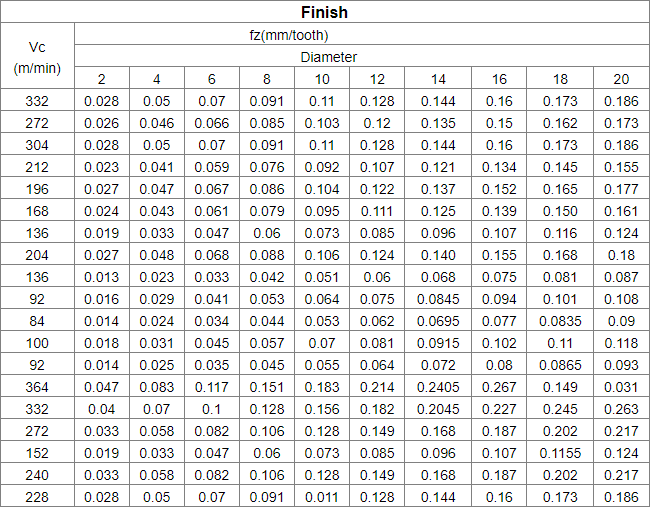

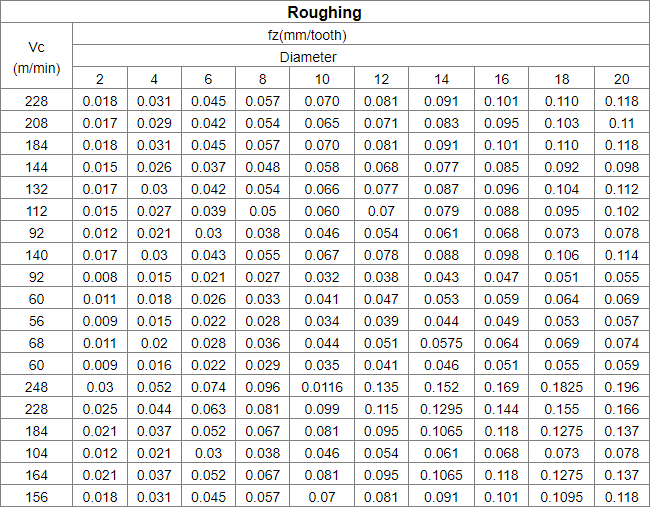

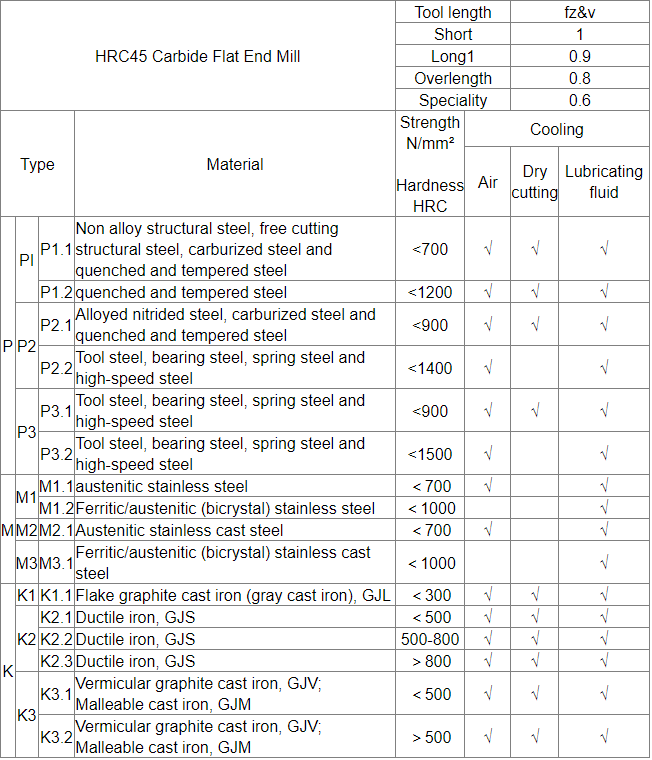

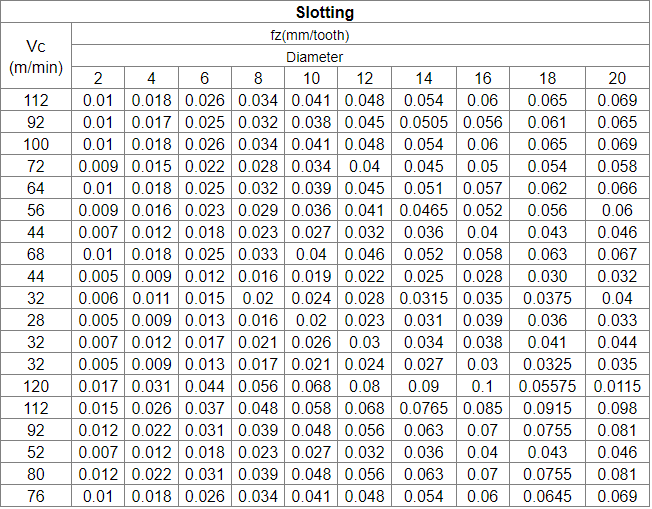

Milling Parameters:
Note:
If the following carbide flat end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions:
- Before using the carbide flat end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
