Description:

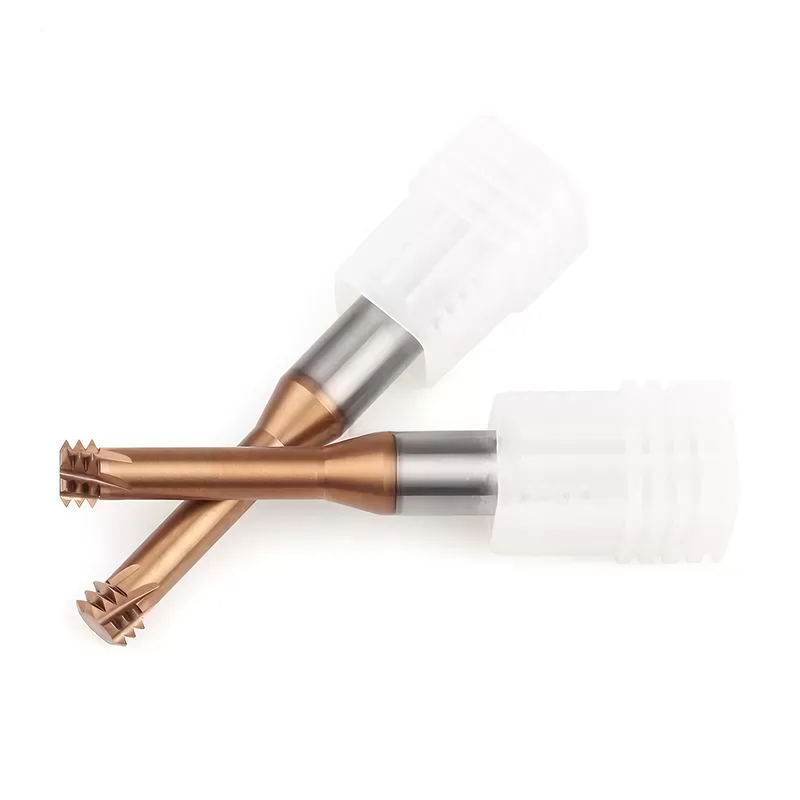

- The thread end mill is made of brand-new ultra-fine particle tungsten steel bar by grinding. It has high pleasure and wear resistance, making a strong guarantee for the service life of the tool
- High density coating technology makes the tool have excellent wear resistance and effective thermal insulation, making the tool performance stable
- The new blade shape design has smooth surface and is not easy to collapse. It gives consideration to the rigidity of the tool and chip removal performance. The chip removal is smooth and free of chip accumulation, effectively preventing chip build-up
- Universal round shank realizes minimal runout and improves milling efficiency

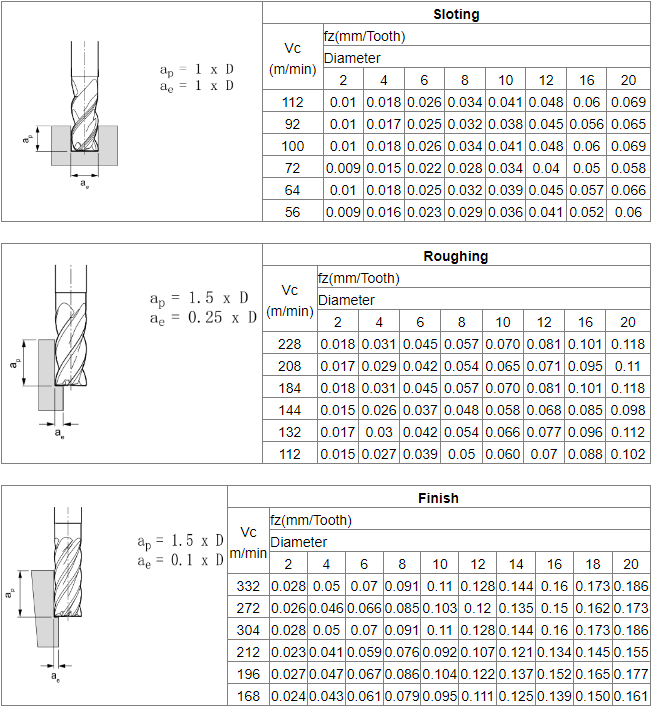

Milling parameters:
Note:
If the following carbide thread end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size thread end mill. Please contact us to select or customize non-standard carbide thread end mill according to your needs.
Instructions:
- Before using the carbide thread end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
