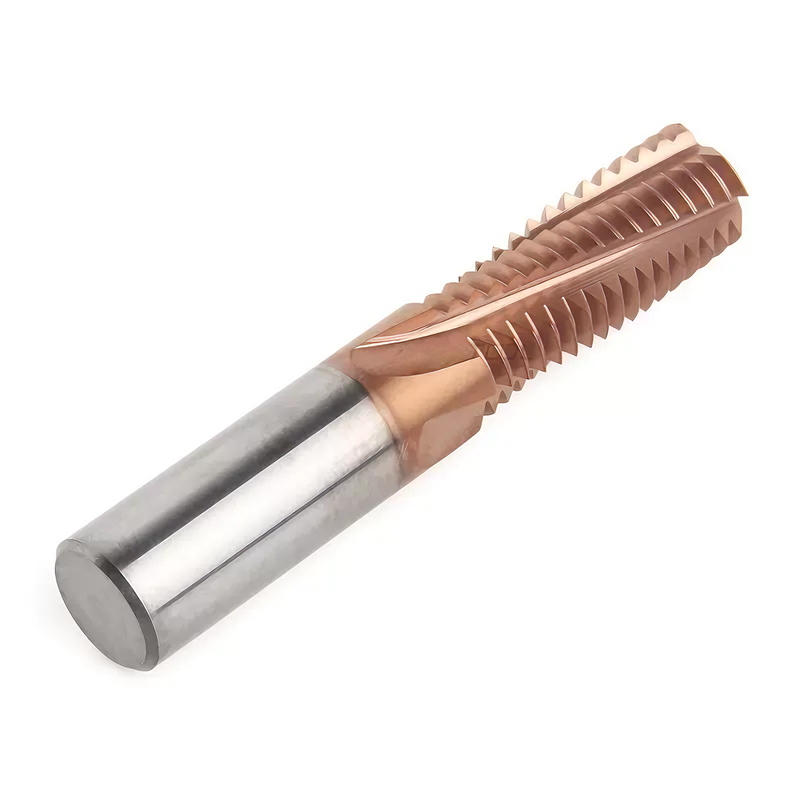

Description:
- The imported micro particle tungsten steel base material is adopted, which has higher hardness, stronger wear resistance and greatly improves the service life of the tool;
- Multilayer nano coating can reduce the heat generated by friction and reduce tool loss
- The first-class precision machine tool grinds the unique spiral edge angle, which is sharp and wear-resistant, smooth in cutting, and improves the thread end mill efficiency
- Large capacity chip discharge groove design, powerful cutting, smooth chip discharge, high precision and more luster of the processed workpiece
- Strict precision control, easier installation, suitable for CNC machine tools and machining centers

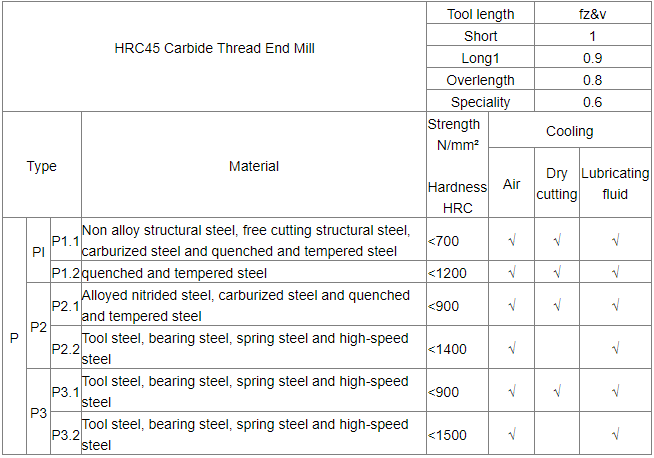

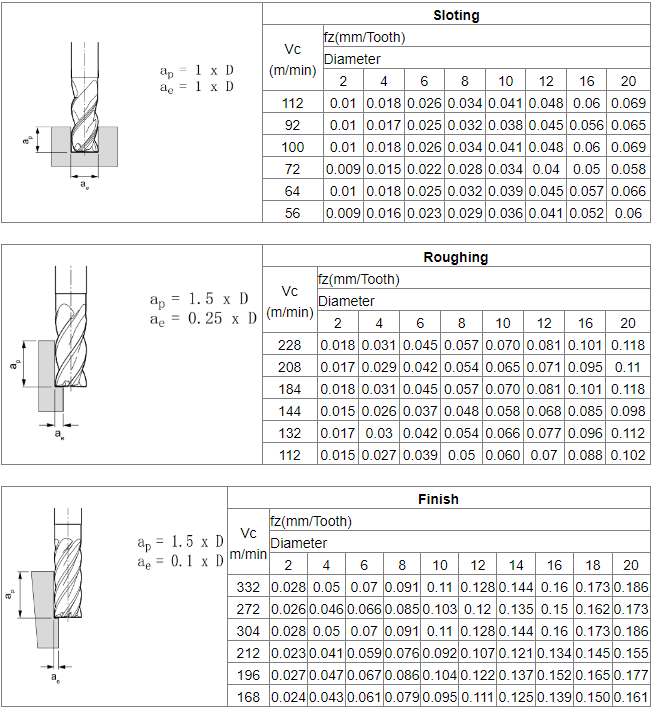

Milling parameters:
Note:
If the following carbide thread end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size thread end mill. Please contact us to select or customize non-standard carbide thread end mill according to your needs.
Instructions:
- Before using the carbide thread end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
