Description:

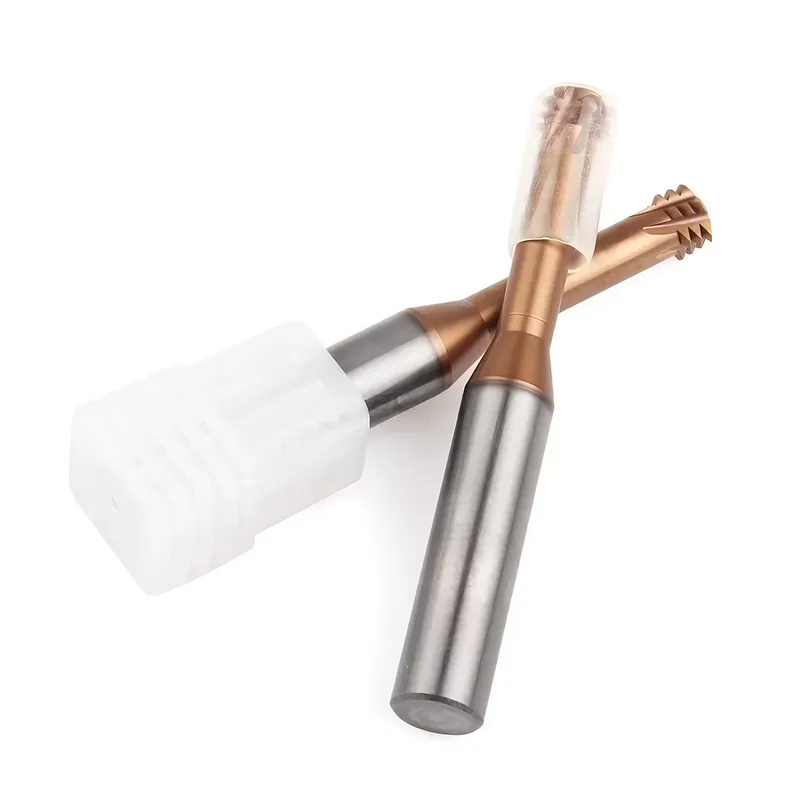

The threading end mill is made of brand-new ultra-fine particle bar by grinding, with high rigidity and wear resistance, which makes a strong guarantee for the service life of the tool; High density coating technology, excellent wear resistance and effective thermal insulation to ensure the tool’s ultra long service life; Excellent new edge shape design, smooth surface, not easy to collapse, enhance the rigidity of the tool, and at the same time, it has good chip removal performance, which ensures that the tool will not stick under the condition of high-speed cutting, with more stable performance and more efficient processing.

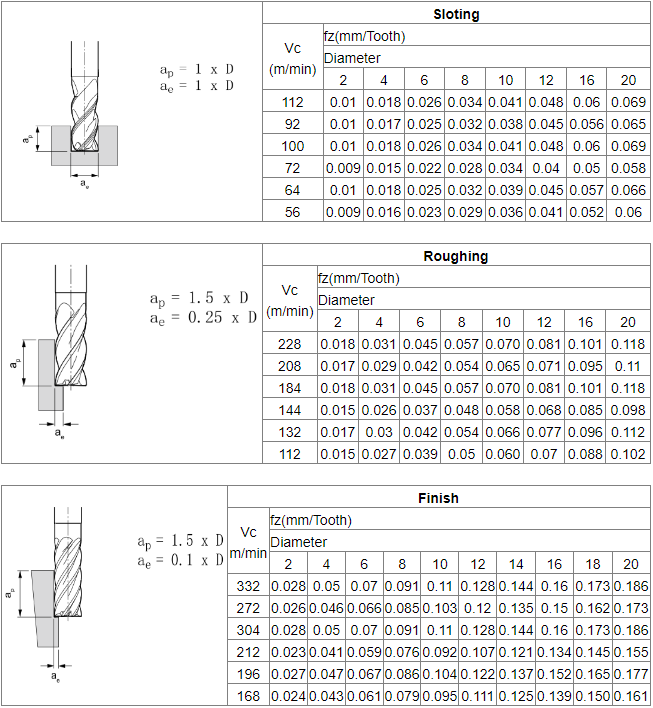

Milling parameters:
Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
