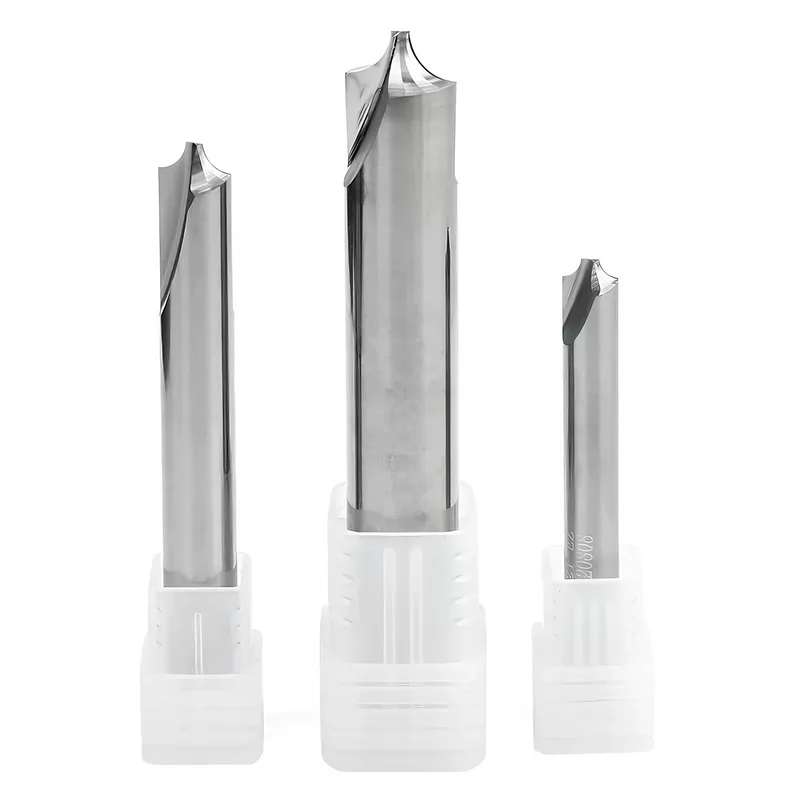

Description OF inner-R End Mill
The HRC55 2F aluminum internal R milling cutter has high surface finish, smooth cutting, improved work efficiency, high temperature resistance, and stronger wear resistance; Adopting a sharp blade angle design, greatly reducing cutting resistance, large spiral angle, straight groove chip removal without burrs, improving the smoothness of the processed workpiece; The chamfered layout of the handle makes clamping easier and the cutting process stable, which is beneficial for preventing tool breakage.

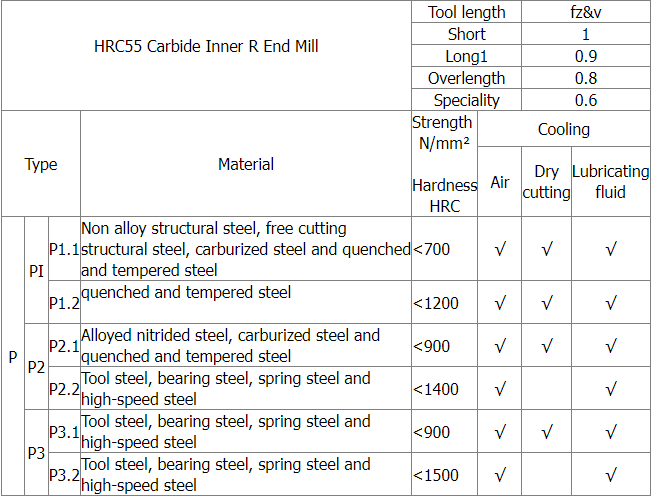

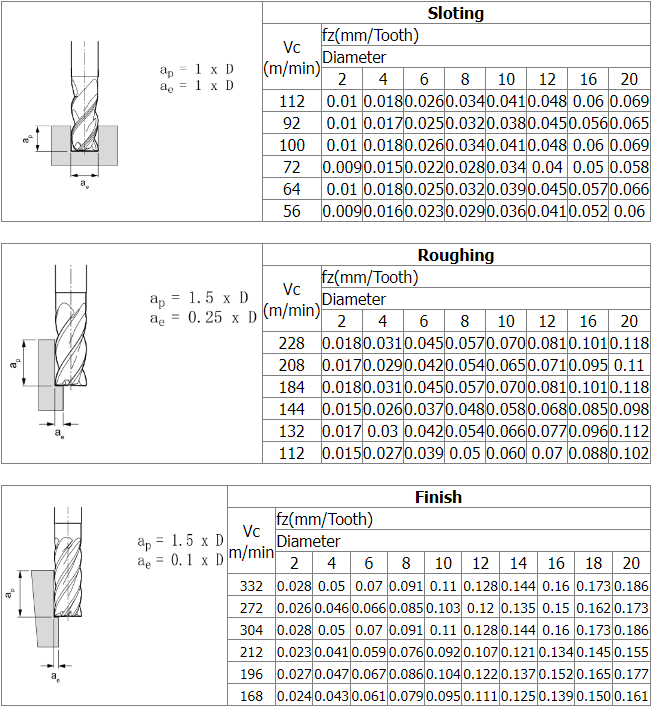

Milling parameters OF inner-R End Mill：
Note OF inner-R Milling Cutter：

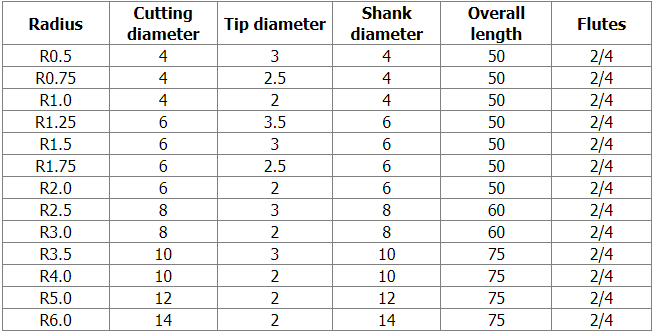

If the following carbide internal R milling cutter cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions OF internal R Milling Cutter
- Before using the carbide internal R milling cutter, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide inner R milling cutter.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications OF internal R End Mill
