Description:
1.High quality domestic superfine particle tungsten steel bar is used, which has strong versatility and is suitable for rough machining and fine machining
2.The surface is passivated, corrosion resistant and not easy to oxidize, further improving the surface finish of the carbide corner radius end mill, and ensuring the firmness and service life of the coating
3.The full grinding edge is smooth in cutting, and it is processed by high-quality machine tools to ensure the sharpness of the edge and smooth in cutting
4.Fine grinding of spiral groove on mirror surface, smooth chip removal, avoiding knife sticking, greatly improving production efficiency
5.The universal chamfered round shank has good compatibility, and enhances the shock resistance and cutting speed of the carbide corner radius end mill

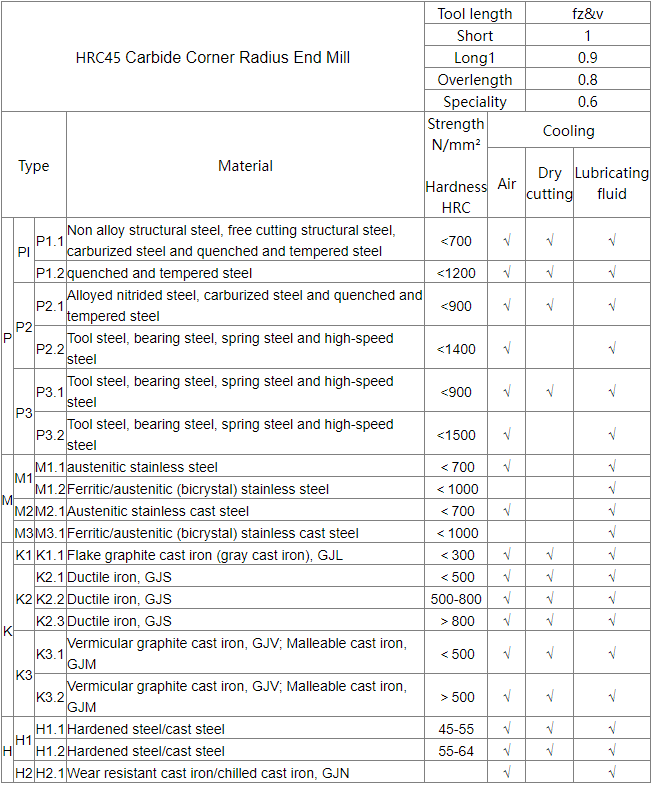

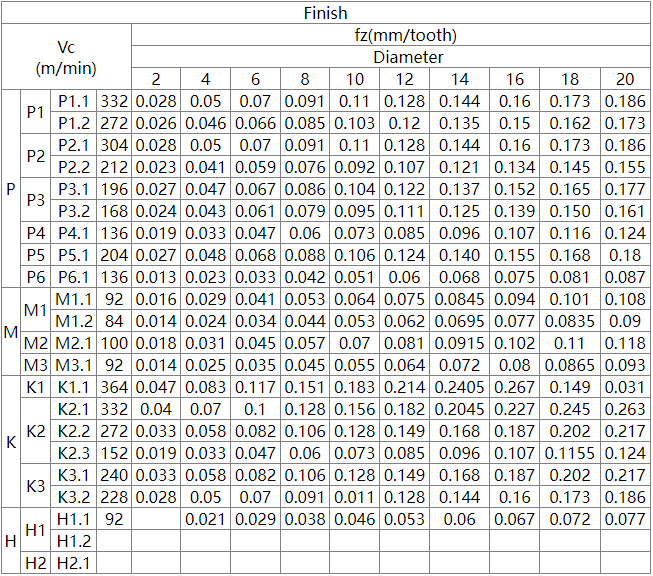

Milling Parameters:
Note:
If the following carbide corner radius end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size carbide corner radius end mill.
Instructions:
- Before using the carbide corner radius end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
