Description:

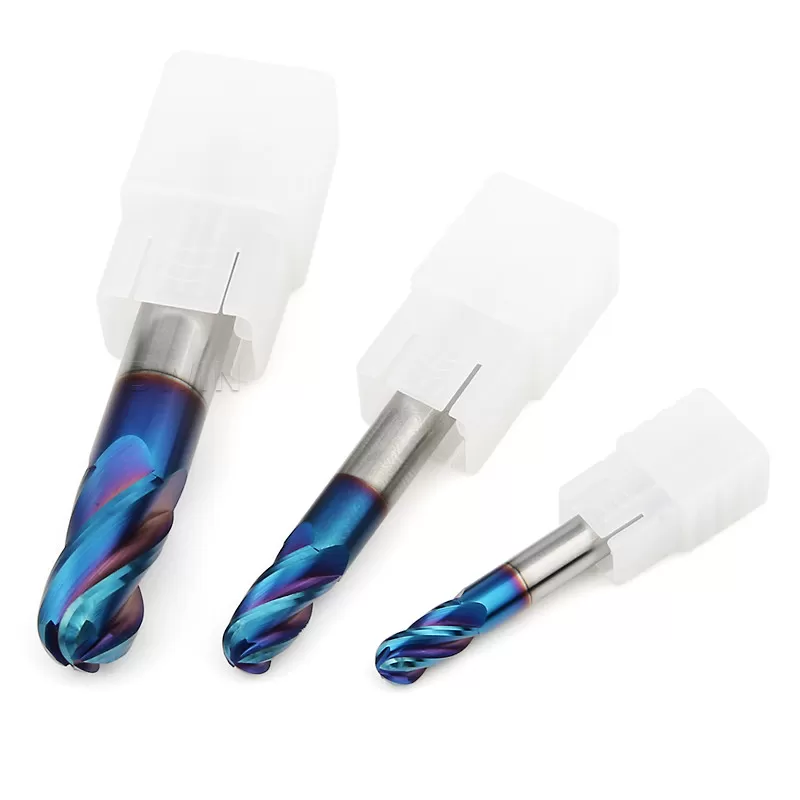

The 65 degree universal ball nose end mill made of 0.2UM fine grain high-quality tungsten steel base material has higher wear resistance and hardness, sufficient toughness and wear resistance, and is more durable; High precision grinding technology of imported Walter grinder, not easy to wear, long service life; The knife edge is passivated to reduce burrs and cracks during sawtooth processing, enhance the wear resistance of ball nose end milling cutter and improve the surface finish; The handle chamfer design is easy to clamp and more firm.

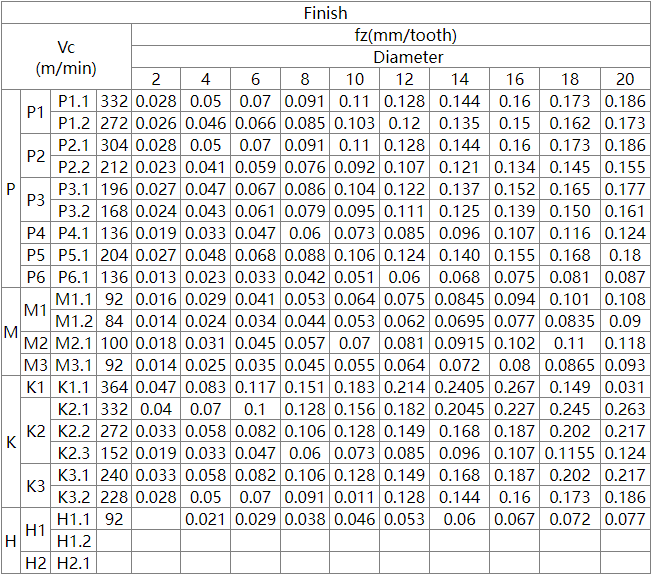

Milling Parameters:
Note:

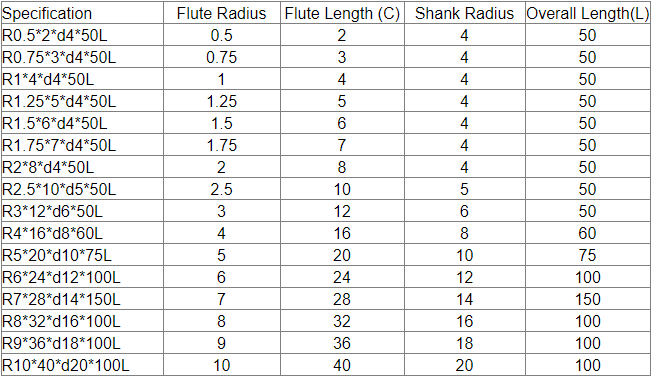

If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
