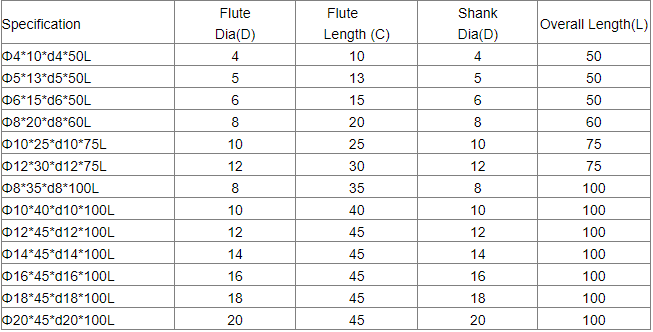

Quick details of Corner Radius End Mill
The HRC65 corner radius end mill adopts ultra-fine tungsten carbide, which has higher wear resistance and strength,more stable quality and lower probability of tool breakage; The resin grinding wheel imported from Germany is used for fine grinding to make the edge in the groove smooth, remove chips quickly, refuse to stick the knife, and improve in all directions.

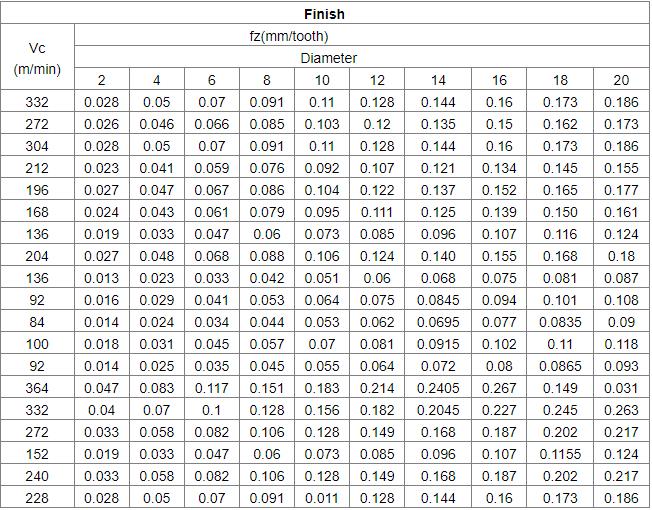

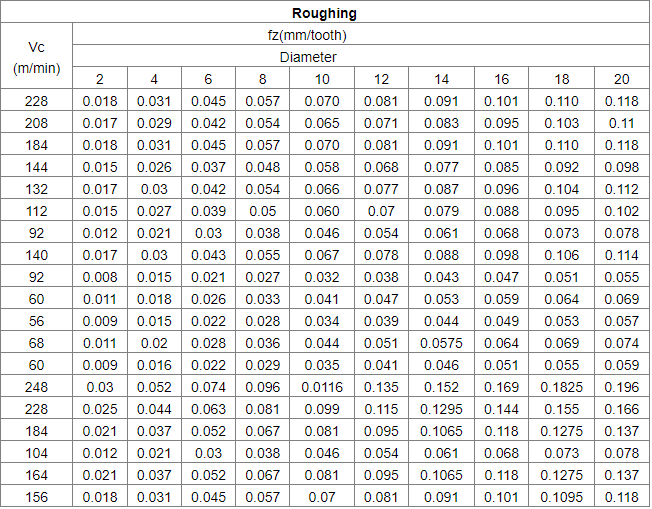

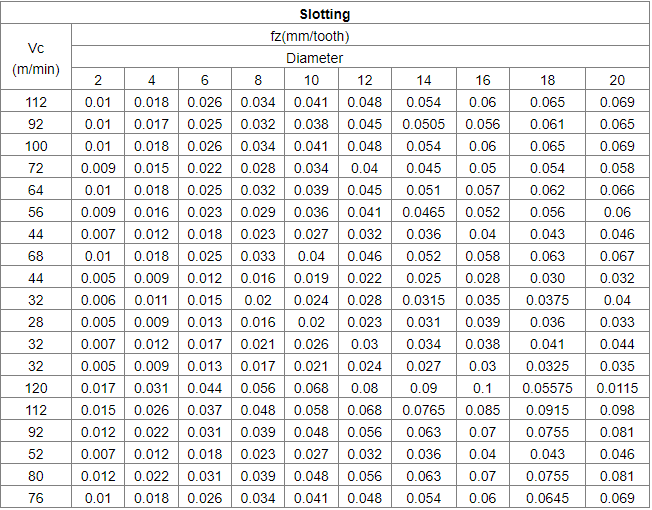

Milling Parameters of Corner Radius End Mill
Note：
If the following carbide corner radius end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions of Corner Radius End Mill
- Before using the carbide corner radius end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide corner radius end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications of Corner Radius End Mill
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and so on. General-purpose operation slotting, rilling, profiling.
