Description:
- The new fine grain tungsten steel base material and imported advanced grinding machine equipment are adopted. The carbide roughing end mill has high hardness, stiffness and strength.
- The surface is smooth and clean, with good chip removal, no burr, no knife sticking, no knife breaking, sharp and wear-resistant.
- Double edge belt and 35 ° spiral angle design, high rigidity and wear resistance are conducive to large cutting, reducing workpiece burrs and not easy to touch the tool during machining.
- The chip removal groove is designed to ensure smooth chip removal during processing, which can effectively reduce the crack and wear of products. Unique spiral edge angle, sharp and wear-resistant, smooth cutting, greatly improving cutting efficiency.

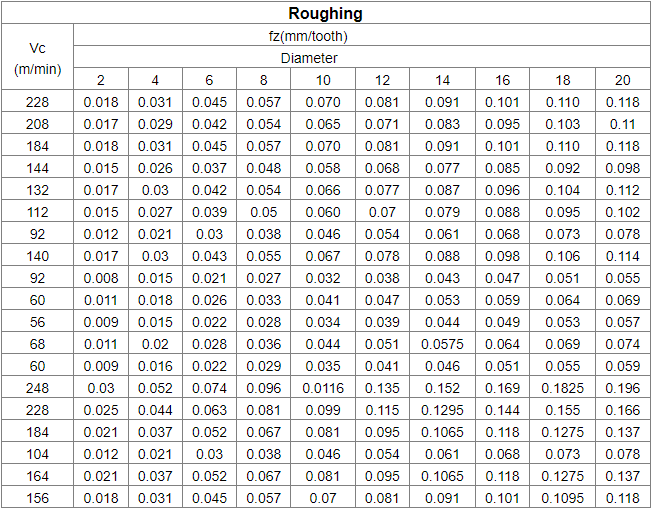

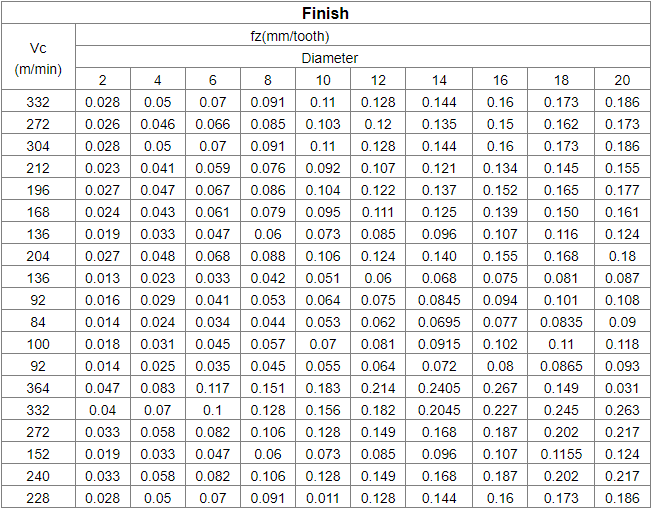

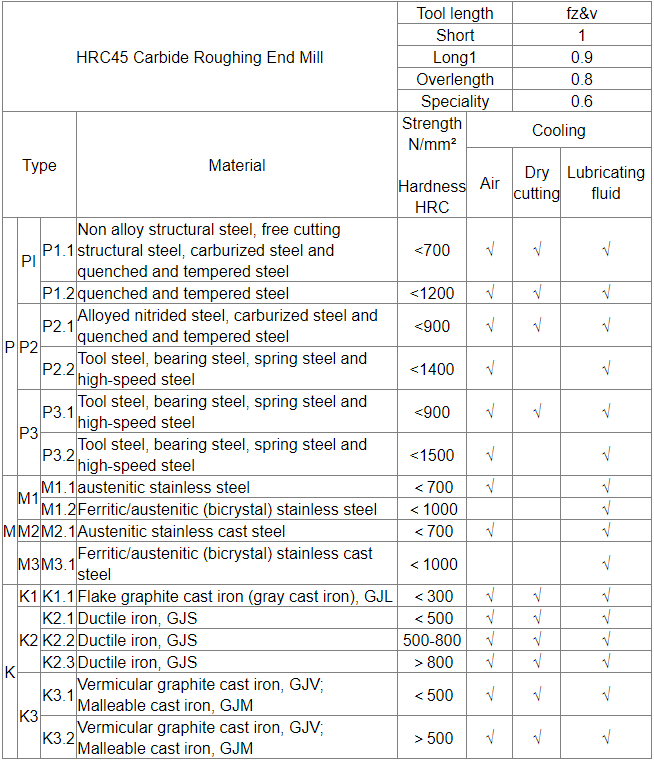

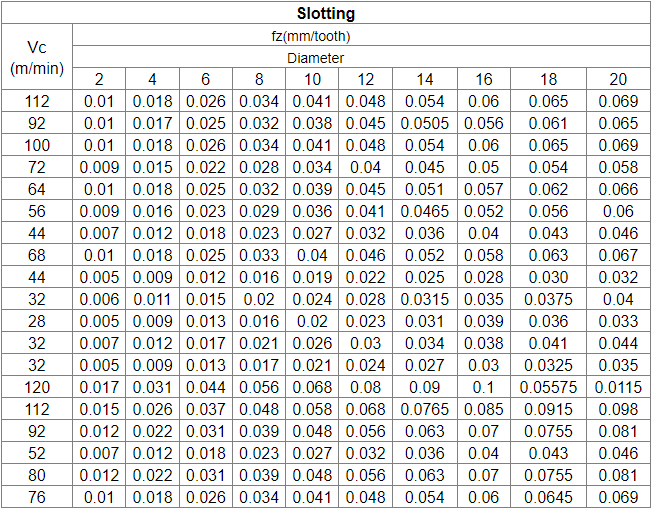

Milling Parameters:
Note:
If the following carbide roughing end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size carbide roughing end mill. Please contact us to select or customize non-standard carbide roughing end mill according to your needs.
Instructions:
- Before using the carbide roughing end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
