Product Description:
HRC55 Carbide Flat End Mill Copper Coated 2mm Square Milling Cutter
HRC55 Carbide Flat End Mill Copper Coated 2mm 2flute Square Milling Cutter
Description of flat end mill
HRC55 flat end milling cutter uses domestic tungsten steel as the base material of 0.6m fine-grained tungsten steel, effectively ensuring high wear resistance and service life; Double-blade belt and 35 ° spiral angle design make the flat milling cutter more wear-resistant and reduce product burr during processing; Large core diameter design enhances the rigidity and seismic resistance of the cutter body; The chamfer design of tungsten steel round bar is easy to use, has good compatibility, enhances the seismic resistance of the square milling cutter, improves the cutting speed of the flat milling cutter, and holds tightly without slipping; Sharp two-edge design, sharp cutting, fast speed, no vibration lines, no sticking knife.

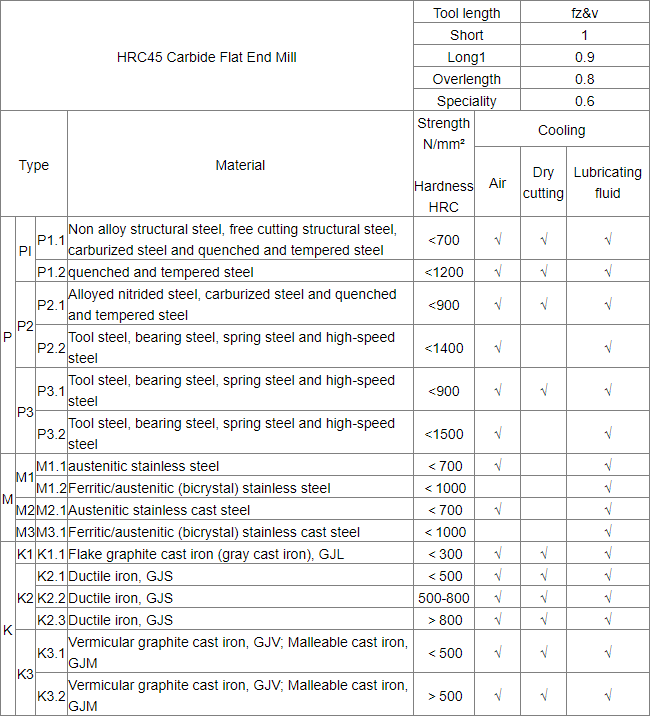

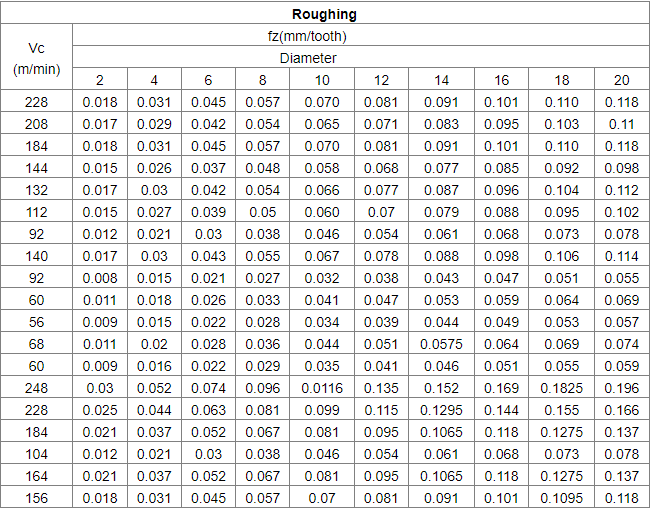

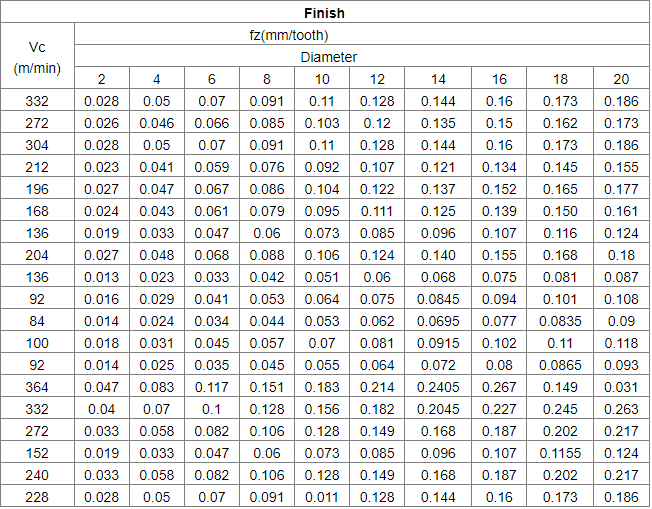

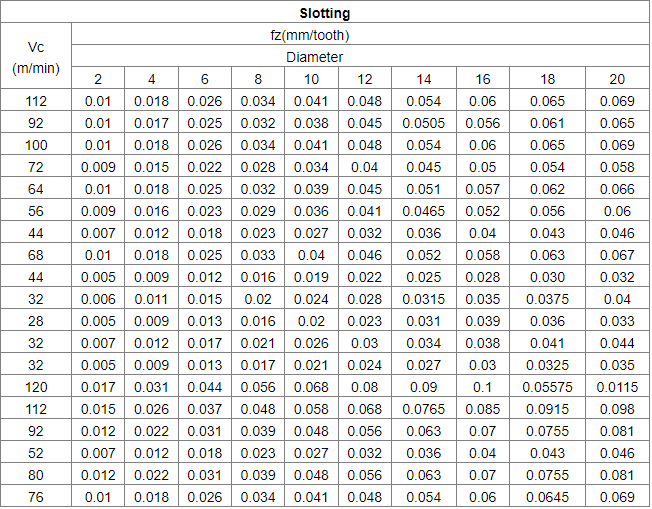

Milling Parameters
Note
If the following carbide flat end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size flat end milling cutter.
Instructions of flat end mill
- Before using the carbide flat end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide square end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Advantage
We have independent research and development team, professional engineers, advanced production and manufacturing equipment, and assembly line production, forming a complete industrial chain, and constantly innovating sales in domestic and international trade. Now it has been sold all over the world, and its performance and quality have been highly praised by customers at home and abroad. Complete specifications, sufficient supply, support non-standard customization, welcome to contact us to place an order.
Applications of flat end mill
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and so on. General-purpose operation slotting, rilling, profiling.
