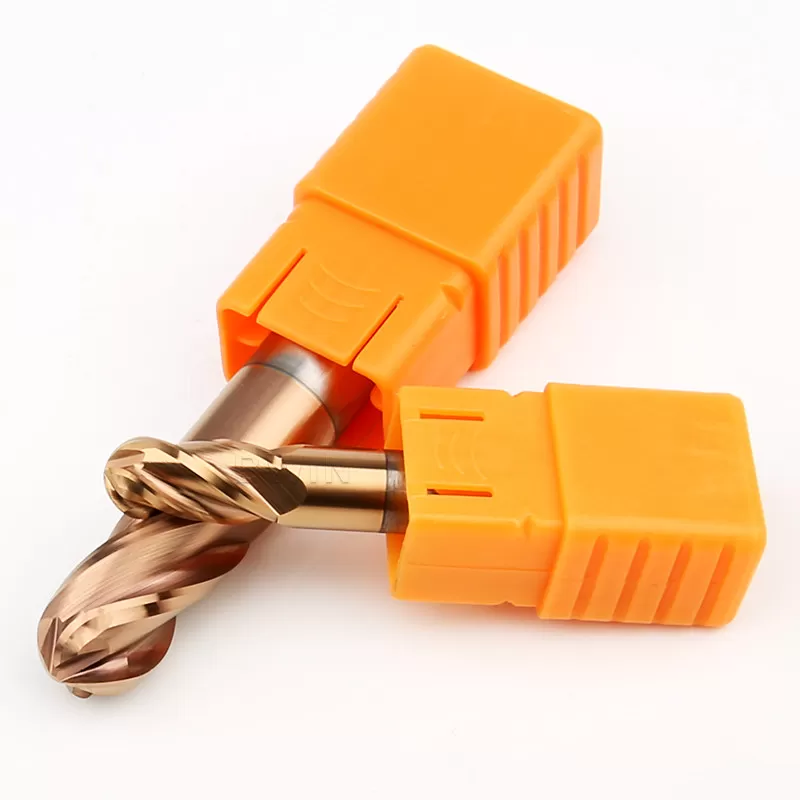

Features of ball nose end mill
- High precision design
The new thread design accelerates the single-edge large chip removal groove and greatly improves the working efficiency; - Tungsten steel base material is solid and durable
The imported tungsten steel base material with new fine particles has high wear resistance and strength; - Large quantity of chip removal groove
The spiral chip removal groove design is more conducive to chip removal, preventing tool overflow or sticking, and greatly improving the surface effect; - Wide application range:
Machining a variety of groove surfaces, side faces, planes, etc., both finishing and semi-finishing are applicable.

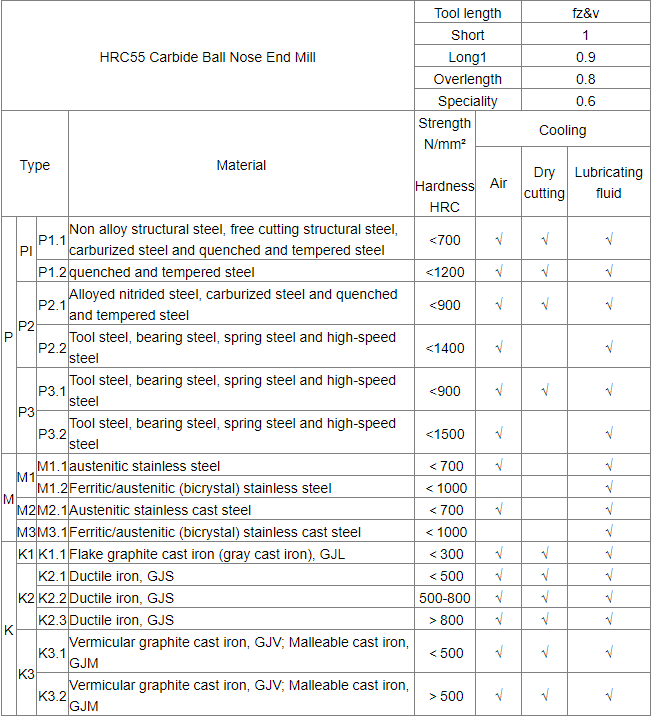

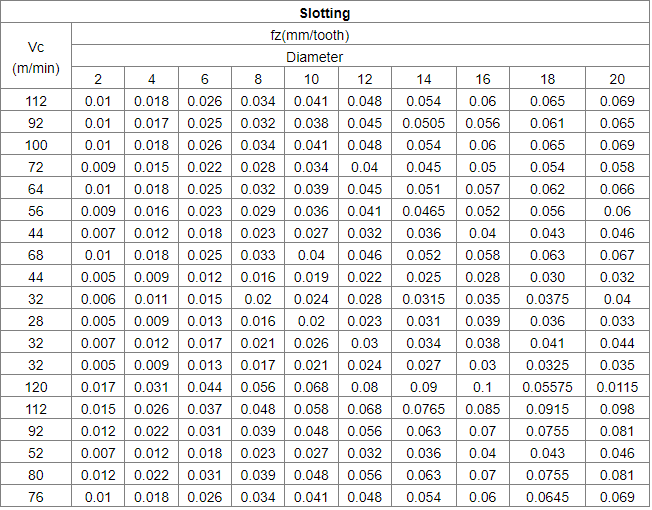

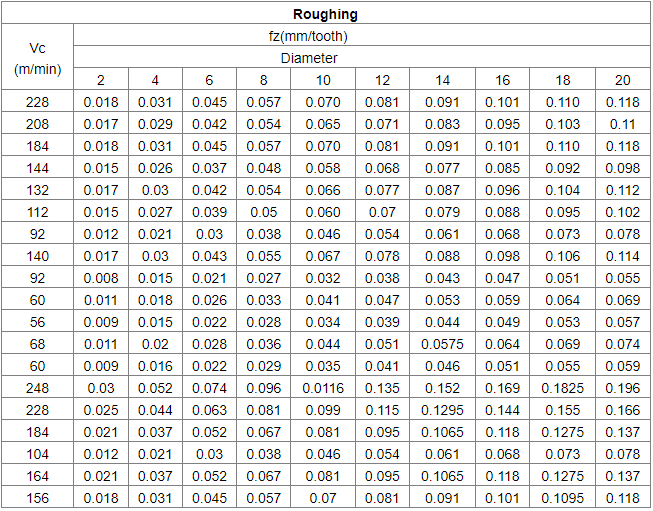

Milling Parameters of ball nose end mill：
Note：
If the following carbide ball nose end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions of ball nose end mill：
- Before using the carbide ball nose end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide ball nose end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications of ball nose end mill：
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and so on. General-purpose operation slotting, rilling, profiling.
