HRC55 4 Flutes Corner Radius End Mill High Quality Carbide Corner Rounding End Milling Cutter

Description:
The HRC55 4F corner radius end mill adopts a brand new fine particle tungsten steel base material, which has high wear resistance and strength. Imported passivation equipment increases wear resistance, making it a versatile milling cutter for high hardness and high-speed cutting applications; Carefully grinding ensures that the cutting edge of the tool is free of burrs, increasing its service life; 3 blade design, effectively preventing tool vibration during use, achieving more stable cutting; Single back corner design ensures a sharper blade, smoother chip removal, faster cutting speed, and a wider range of tool applications; The chamfering design of tungsten steel round bars is convenient to use, has good compatibility, enhances the seismic resistance of the milling cutter, improves the cutting speed of the milling cutter, and ensures tighter clamping without slipping.

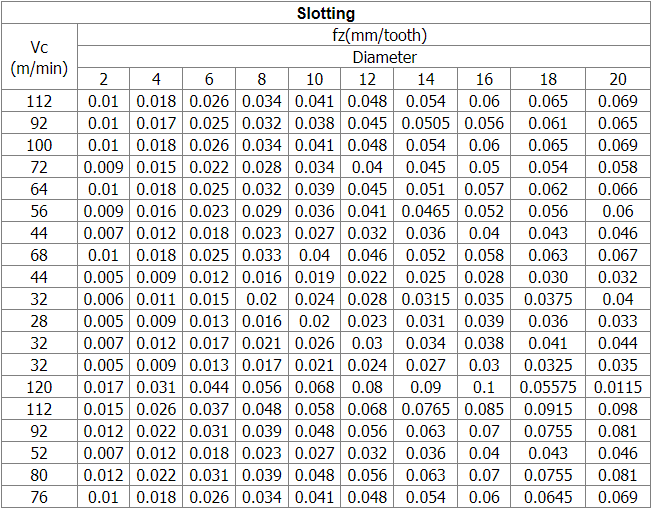

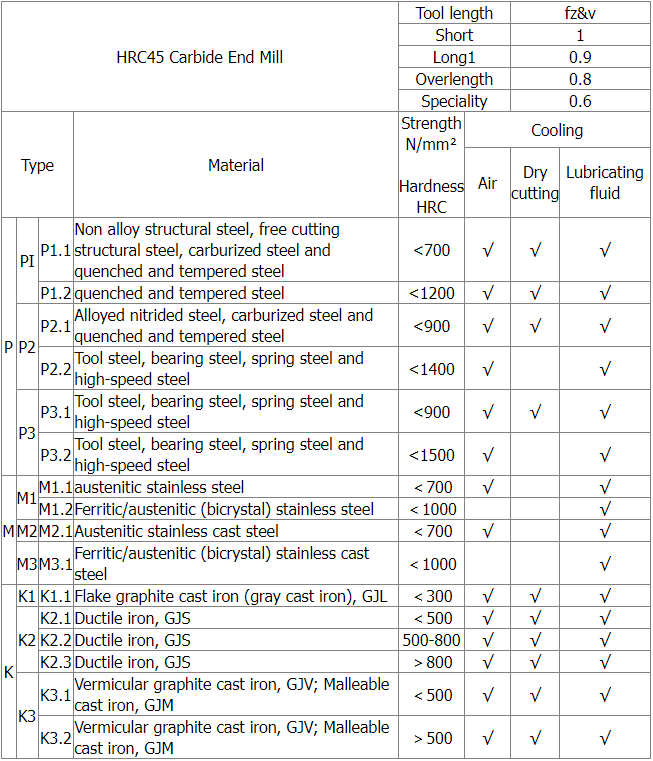

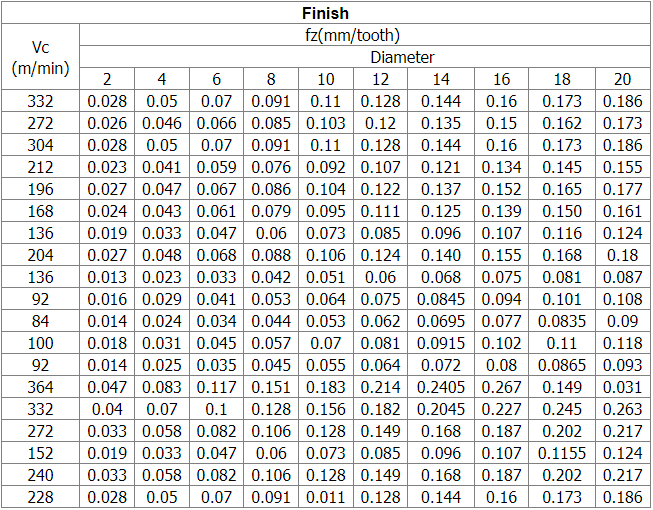

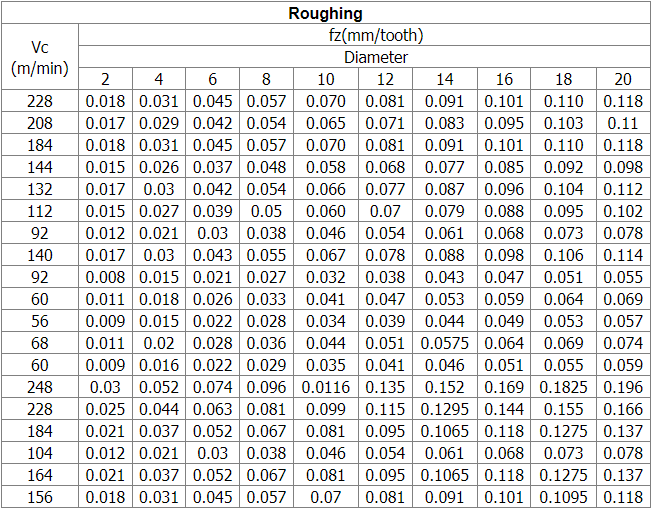

Milling Parameters:

Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.

Instructions:

1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.

Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
