Description:
Adopting Sumitomo’s high-quality tungsten steel rod material imported from Japan for grinding, high rigidity and wear resistance provide strong guarantee for tool life; Balchals nano coating technology has greatly improved the surface hardness and heat resistance of cutting tools, with a significant tool life and easy handling of materials such as 55 degree quenched steel, stainless steel, and mold steel; The sharp edge of the large core diameter blade is extremely sharp, and the large core diameter design is adopted to greatly enhance the rigidity and seismic resistance of the cutting tool while ensuring the cutting space; The design of multiple chip removal grooves, precision grinding of spiral grooves, and passivation treatment effectively avoid the risk of sticking and cutting, greatly improving production efficiency; The chamfered round handle has good compatibility, enhancing the seismic resistance and cutting speed of the milling cutter, making it easy to clamp and fasten without slipping.

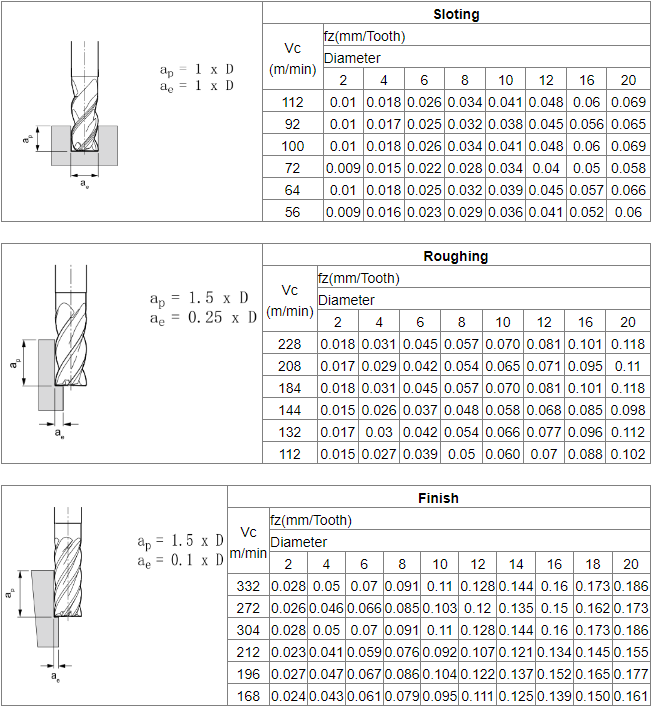

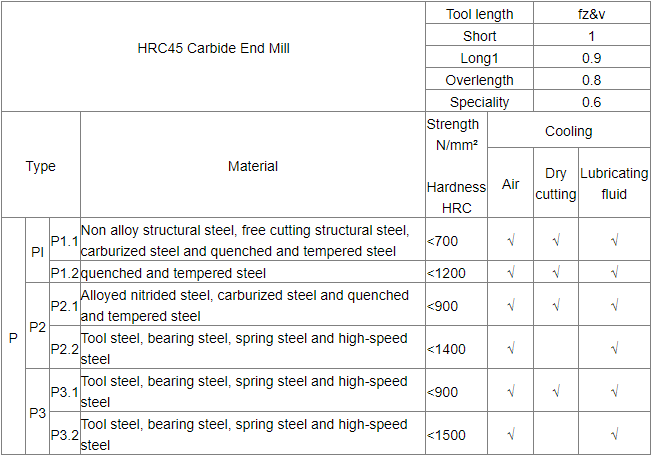

Milling parameters:
Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
