Description:

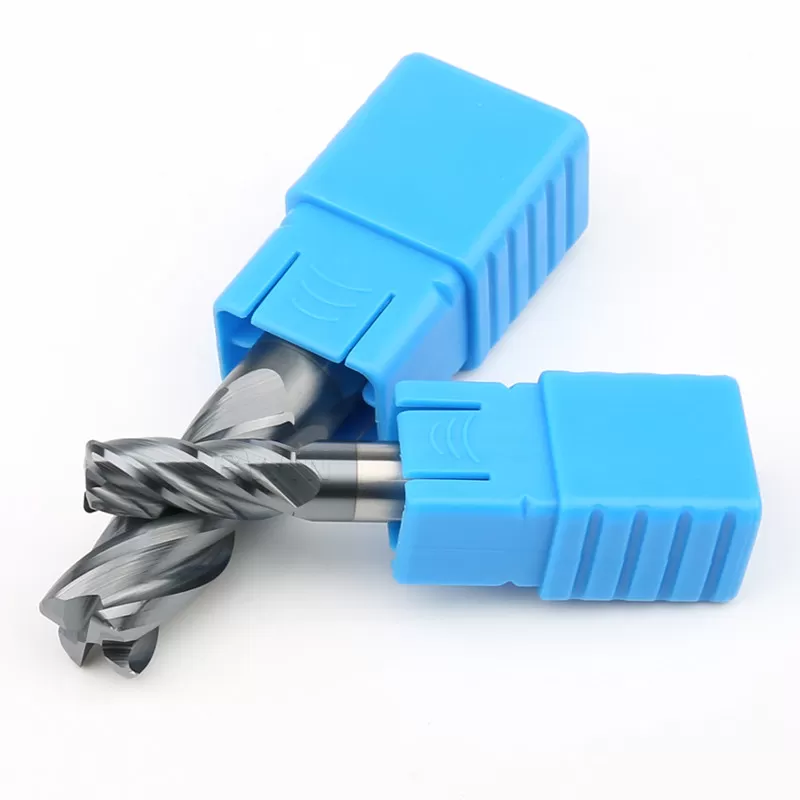

The carbide corner radius end mill is made of fine tungsten steel hard alloy material, precision grinding, new formula composite coating, corrosion resistance and wear resistance
Double edge band milling, which increases the rigidity of the edge band and can effectively remove burrs
The unique chip holding groove shape ensures smooth chip removal without chip accumulation, which can effectively prevent chip buildup. It can also show excellent performance even in groove and cavity processing
Round and smooth handle with precise chamfering design, saving time for tool replacement and improving work efficiency

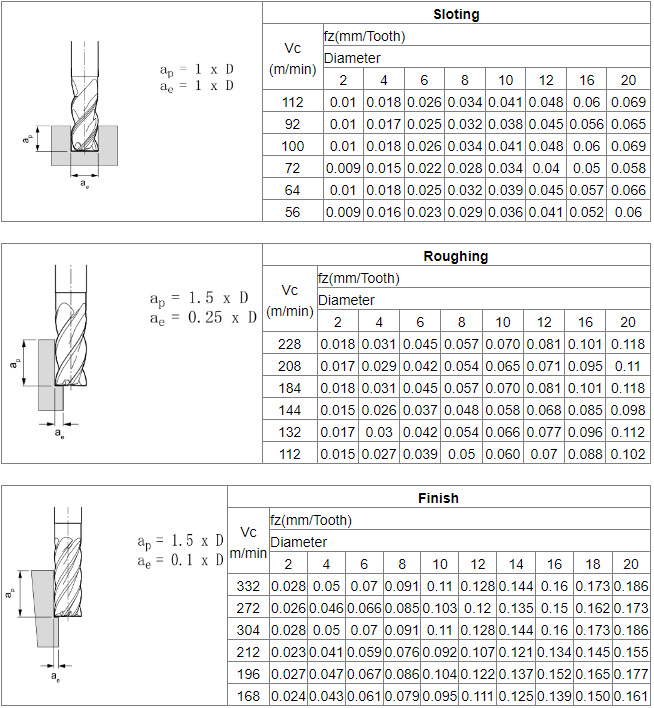

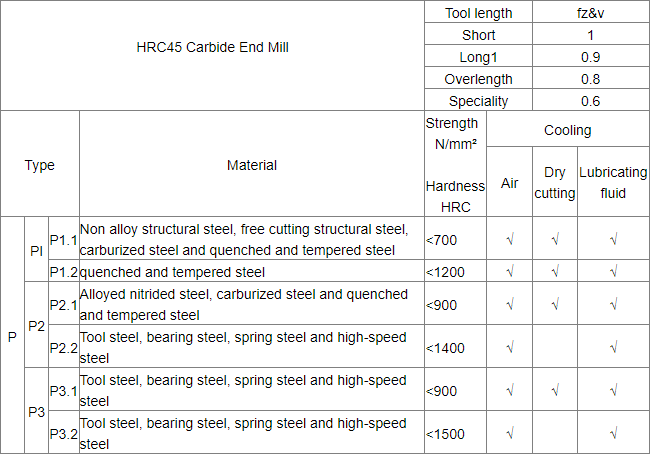

Milling parameters:
Note:

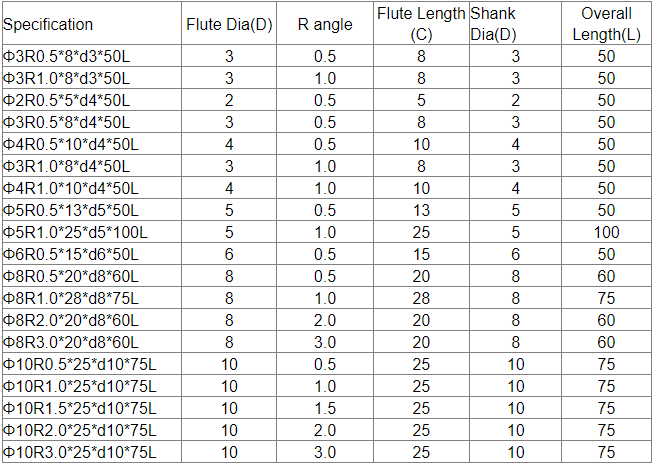

If the following carbide corner radius end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions:
- Before using the carbide corner radius end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
