Description:

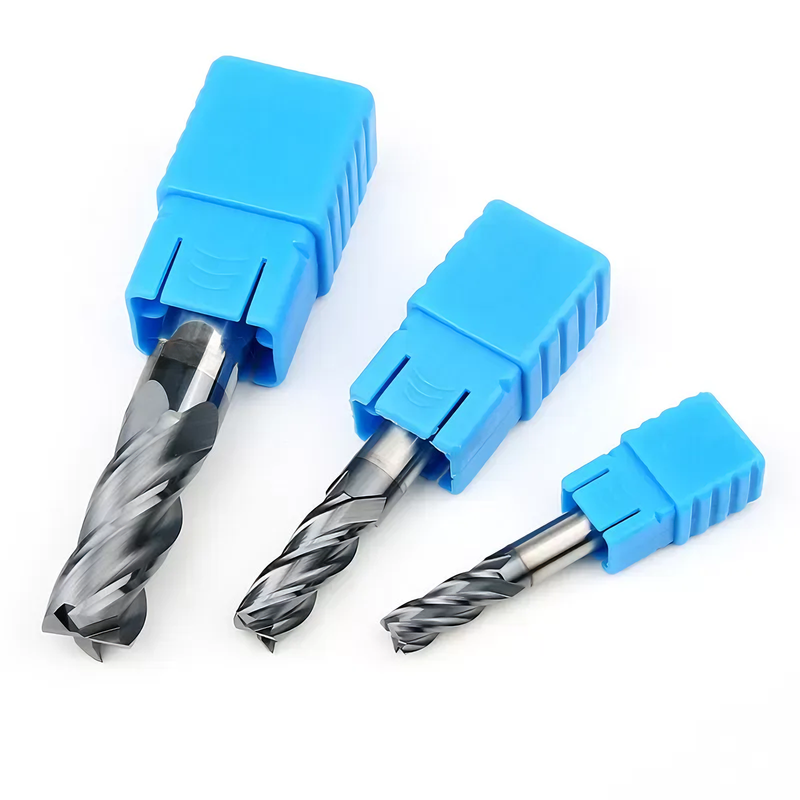

The flat end mill is processed by high precision grinding process to reduce vibration, and it is not easy to break the knife, so it can play a long life; Unequal spiral and large chip discharge groove design enable quick chip breaking and chip removal, smooth cutting, reduce burrs and not easy to stick the tool; High productivity in cutting; High quality coating technology, different series of different coatings, easy to distinguish.

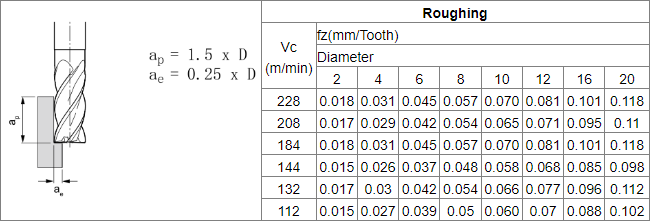

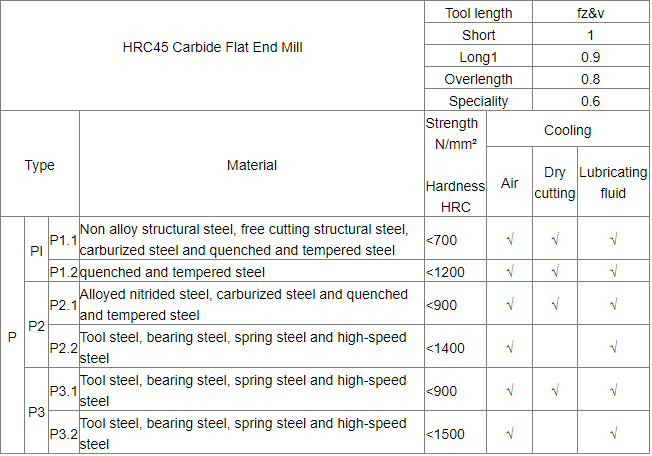

Milling parameters:
Note:

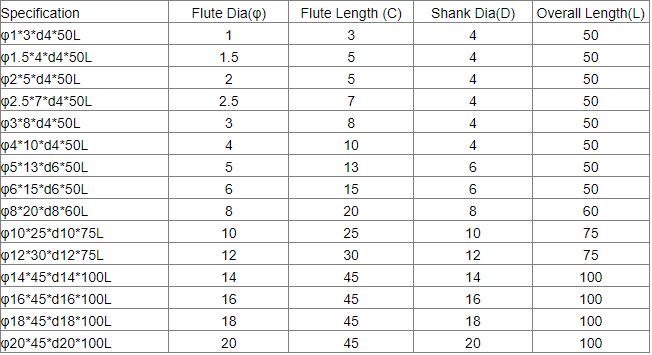

If the following carbide flat end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Notice:
- Before using the tool, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the tool extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of milling cutter.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
