Description:

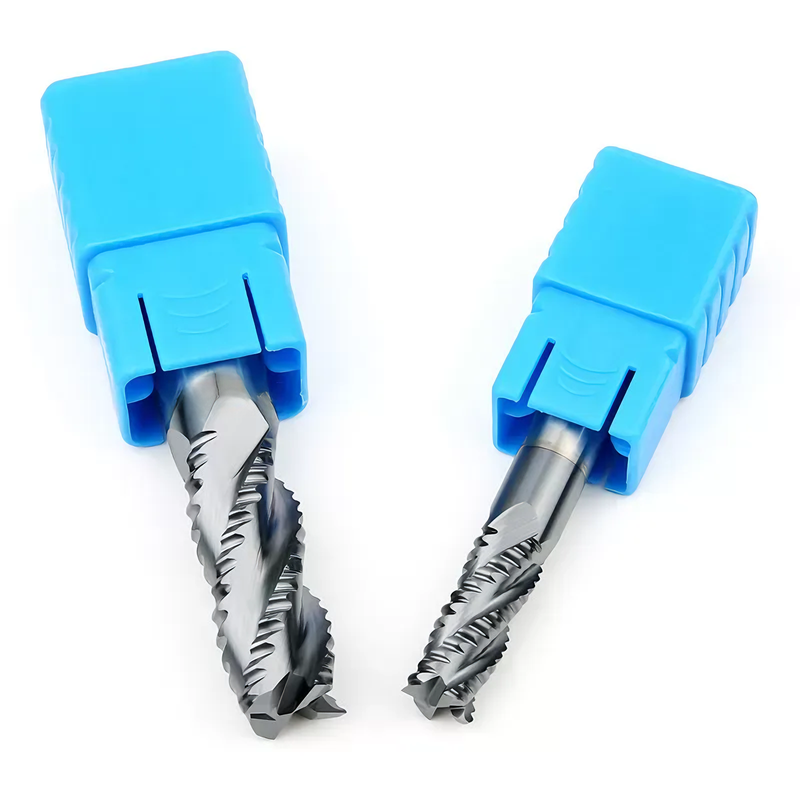

- The high-quality tungsten steel base material is selected, and the sophisticated process standard is more rigorous. It is sturdy, durable, shock resistant and stable. It refuses to use short cutters to ensure the stability and safety of the carbide roughing end mill
- High quality nano coating on the edge, stable and wear-resistant, not easy to wear, fast milling, improve efficiency
- The large core diameter design enhances the rigidity and shock resistance of the tool, making the tool more stable
- Precise chamfer design and processing perfectly fit, saving tool change time and improving work efficiency

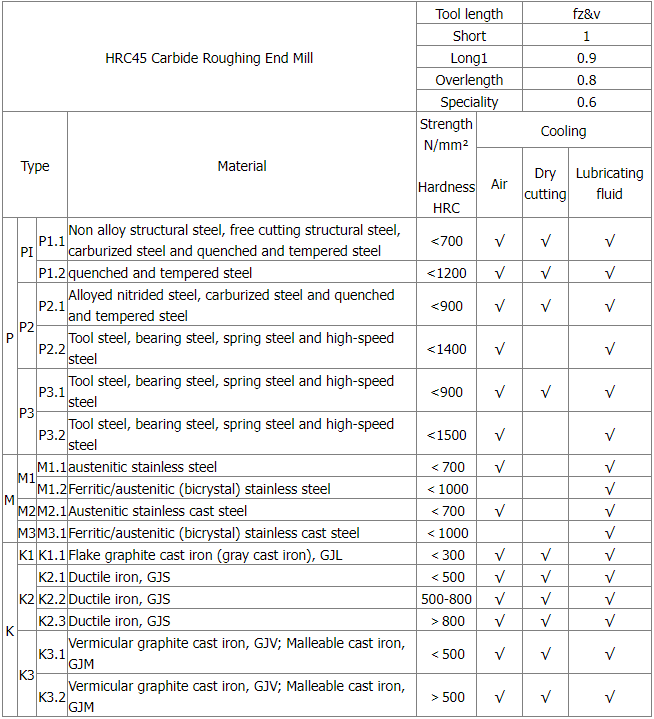

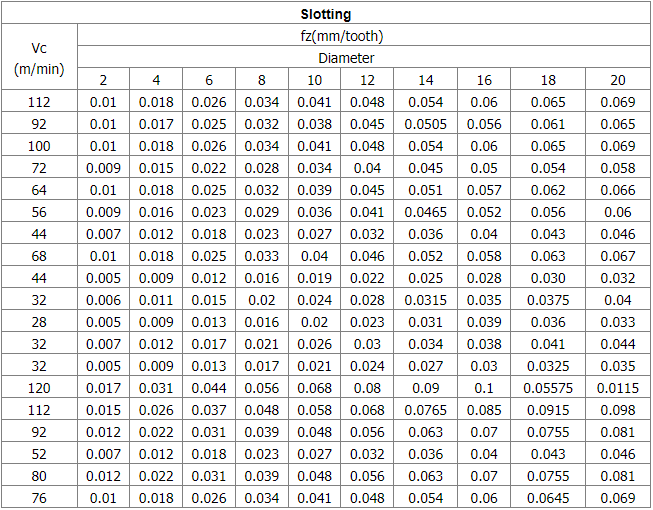

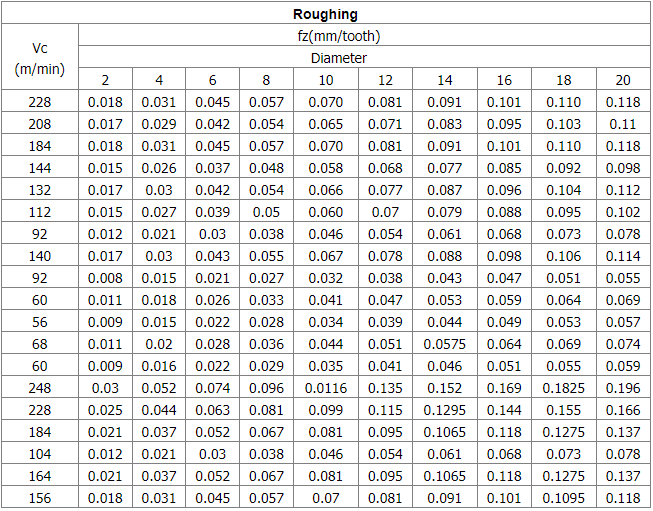

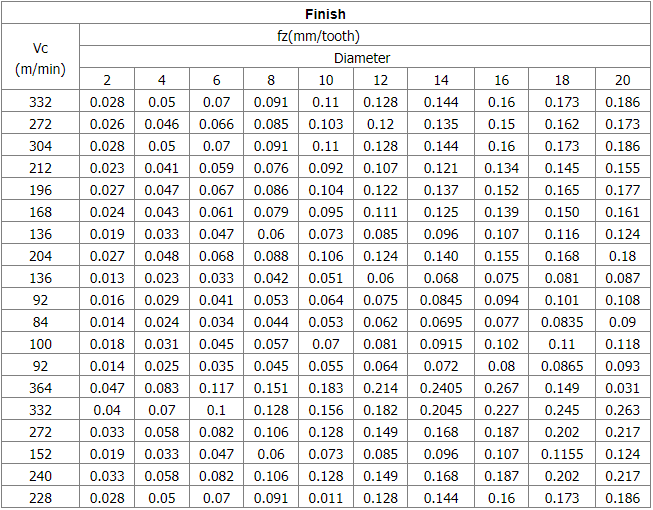

Milling Parameters:
Note:
If the following carbide roughing end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide roughing end mill according to your needs.
Instructions:
- Before using the carbide roughing end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
