Description:

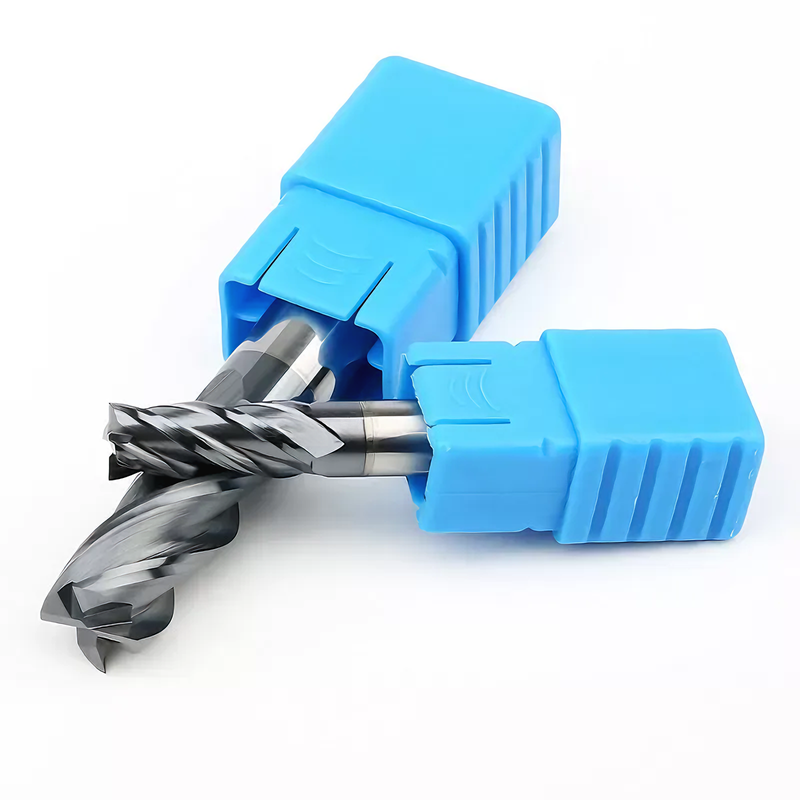

HRC45 4F carbide flat end mill is made of fine tungsten steel cemented carbide material with high precision, and the tool body is polished, with high hardness, rigidity and toughness; The stable core and optimized micro-geometry can achieve high process reliability and higher production efficiency. The cutting parameters are much higher than the common products on the market, and the cutting edge life is much longer; Tool wear and friction heat are behind the scrapping of workpieces; Universal chamfered round shank design, easy to use, good compatibility, enhanced vibration resistance and cutting speed of the milling cutter, tighter clamping and non-slip.

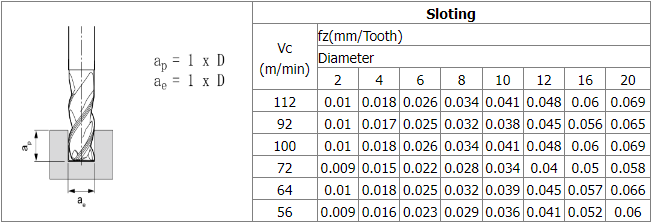

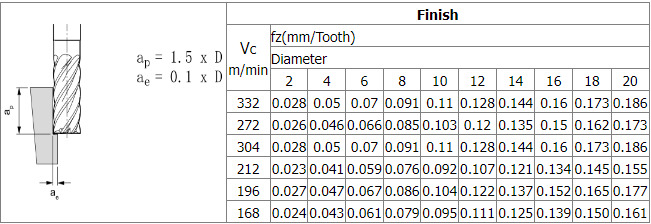

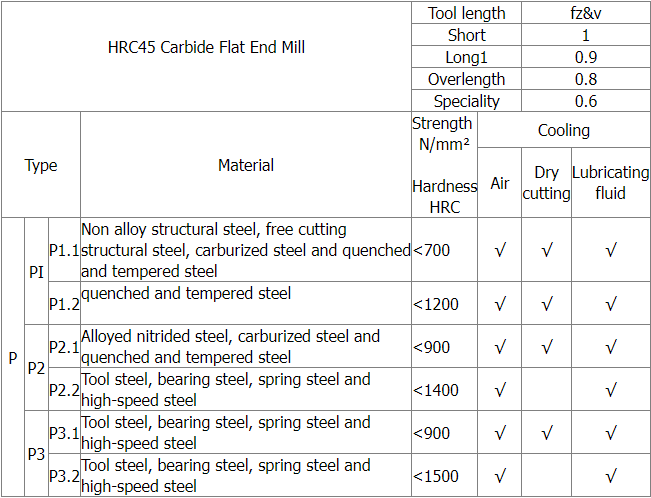

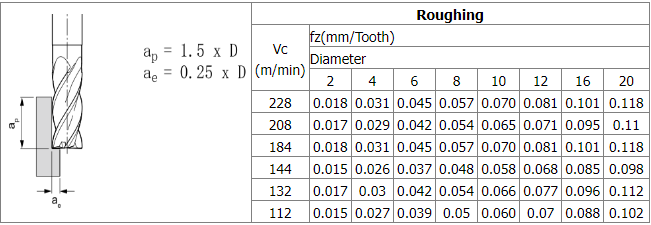

Milling parameters:
Note:

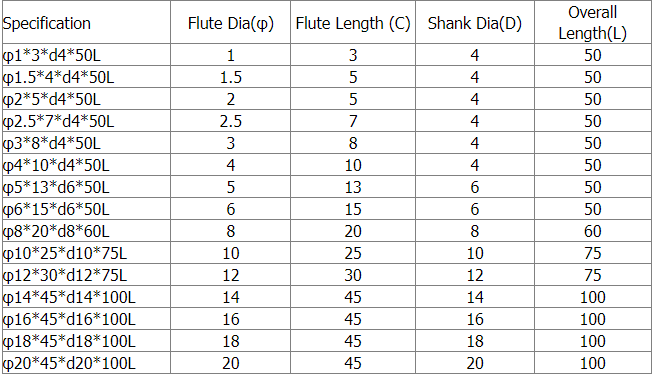

If the following carbide flat end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Notice:
- Before using the tool, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the tool extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of milling cutter.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and so on. General-purpose operation slotting, rilling, profiling.
