Description:

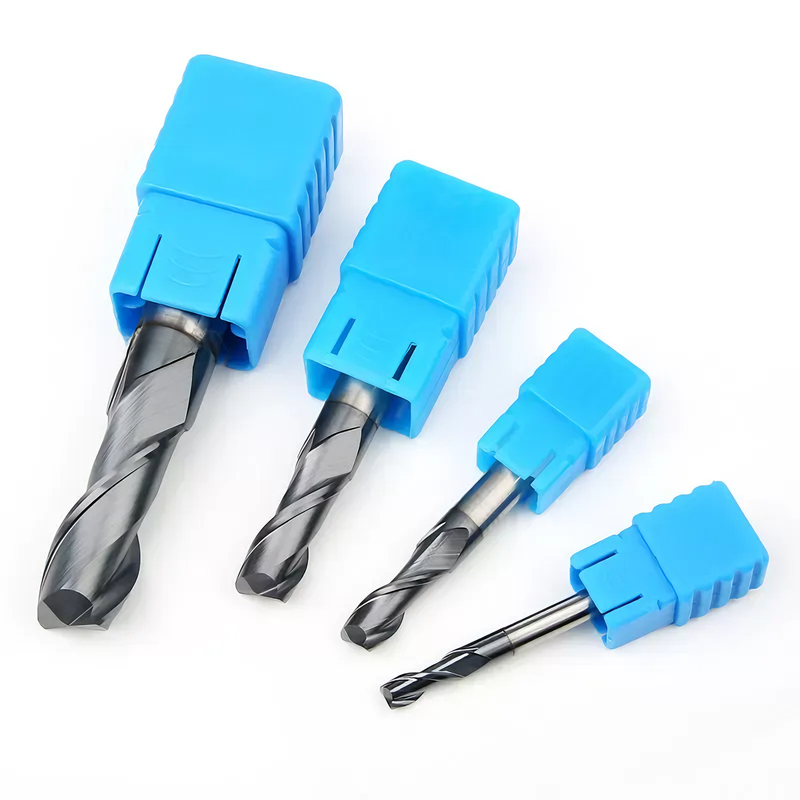

HRC45 2 flute flat end mill uses high-quality wear-resistant raw materials, 0.6-0.8UM ultra-fine grains, with concentrated particle size distribution, excellent wear resistance, and can greatly improve tool life; The blade is coated with TLALN coating. All kinds of steel parts, such as mold steel, alloy steel, stainless steel, cast iron, and materials below HRC45 °, can be processed easily and directly from high-speed rough processing to fine processing. Chamfering, easy to use, is a versatile milling cutter for high hardness and high speed cutting applications. The super-large capacity cutting groove has powerful cutting, and the discharge cutting is more smooth, which can achieve high efficiency processing, and the workpiece is more precise and shiny.

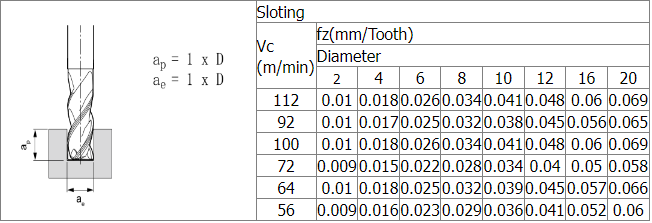

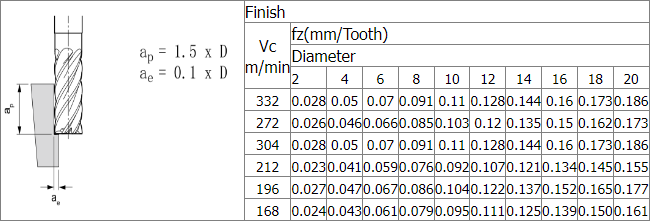

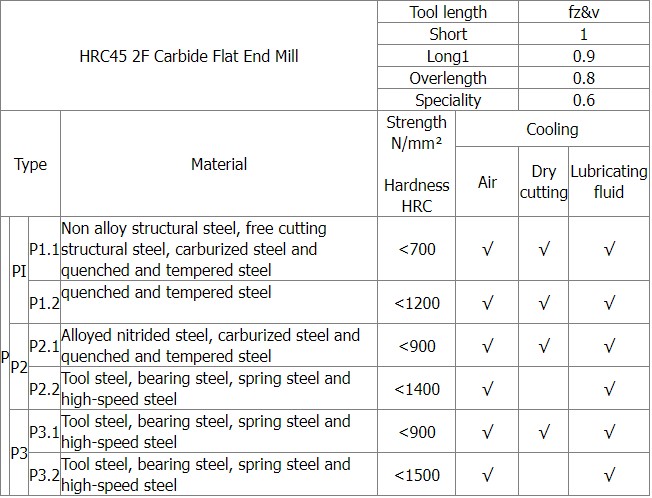

Milling parameters:
Note:

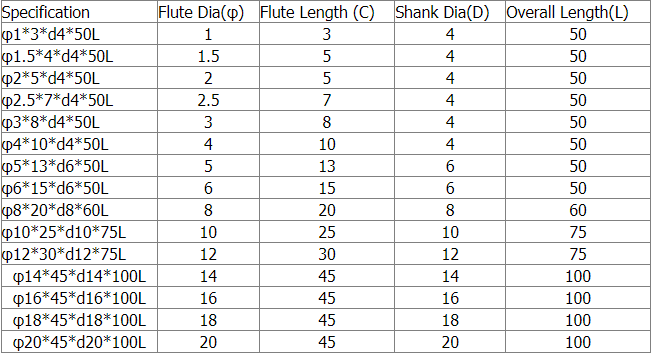

If the following carbide flat end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Notice:
- Please use equipment and fixtures with good rigidity and high precision.
- Please select the cutting fluid applicable to the workpiece material.
- During high-speed machining, avoid using cutting fluid with strong flammability.
- When the used equipment cannot increase the speed, please reduce the feed speed and speed by the same proportion.
- When clamping the flat end mill, please control the runout of the blade tip within 0.01mm.
Reminder:
The coating color will vary with the manufacturing batch, but the quality and performance will not be affected, so you can use it with confidence.
As the coating is non-conductive, please do not use conductive tool setting instrument.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
