Description:
The chamfer end mill body is made of cemented carbide ultrafine tungsten steel by fine grinding. It has high hardness, strength, wear resistance and corrosion resistance. It is a special chamfering tool for high hardness cutting applications; After arc processing, the rigidity and shock resistance of the knife are greatly enhanced, and the wear of the knife tip is greatly controlled; The design of large chip discharge groove and large spiral chip discharge groove at the cutting edge ensures smooth chip discharge without chip accumulation and good surface finish; Universal chamfered round handle design, easy to use, more tight clamping, avoid slipping.

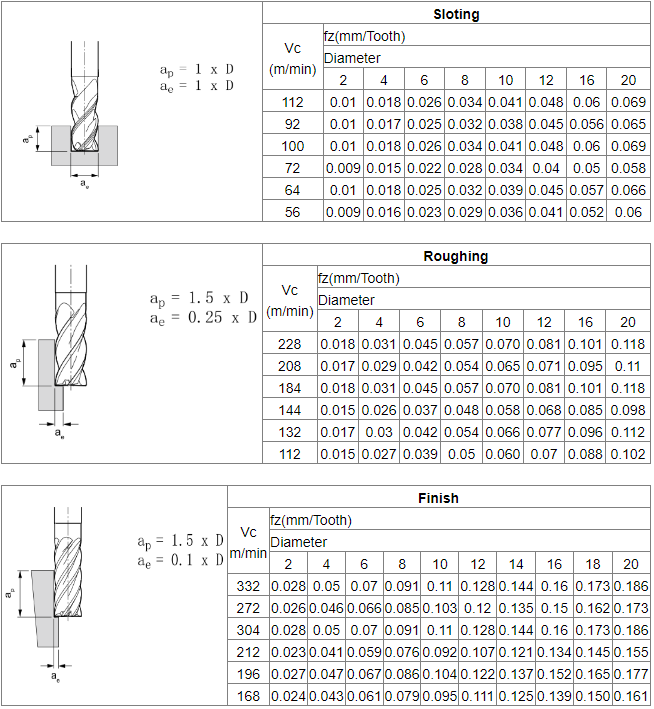

Milling parameters:
Note:
If the following carbide chamfer end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide chamfer end mill according to your needs.
Instructions:
- Before using the carbide chamfer end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide chamfer end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
