Description:
The carbide end mill is made of imported 0.6UM micro grain tungsten steel base material, which has a series of excellent characteristics such as high hardness, high toughness, high strength and high wear resistance. It is a special turning tool for high-speed cutting applications; The tool body is passivated, corrosion resistant and wear-resistant, and the fine grinding blade is free of burrs, with smooth cutting and extended service life; The spiral groove design of full grinding edge, sharp cutting, smooth chip removal, effectively avoid tool sticking, and greatly improve the milling efficiency.

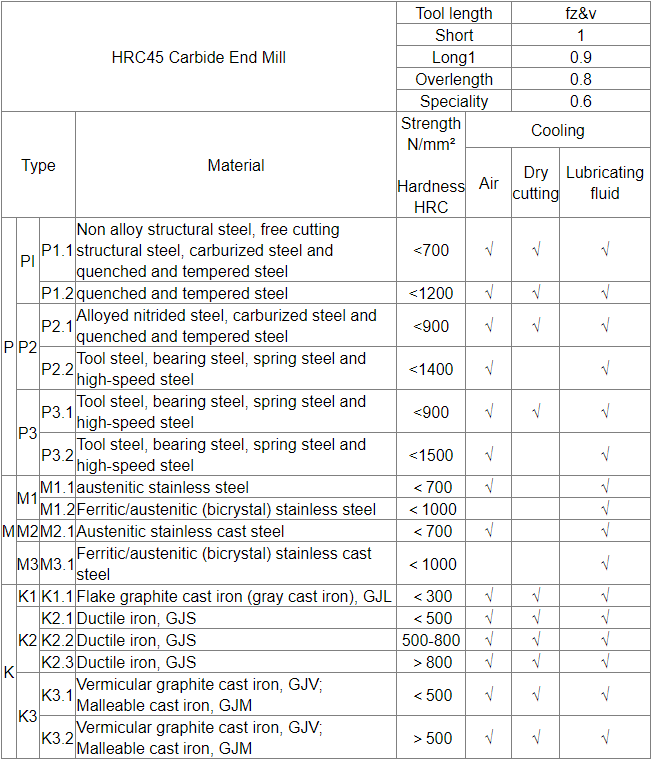

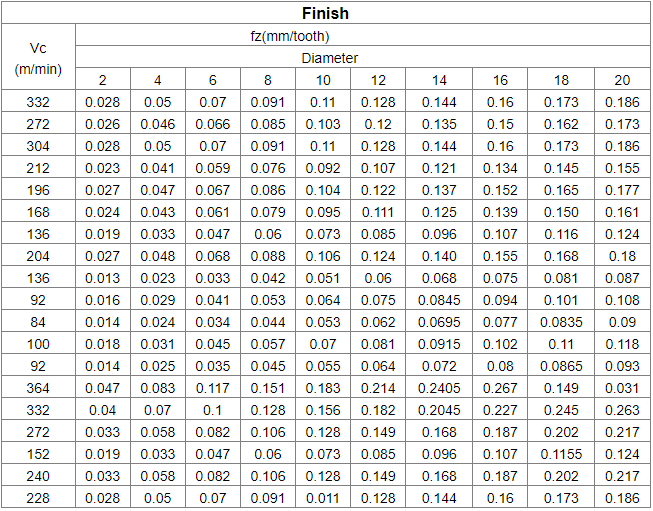

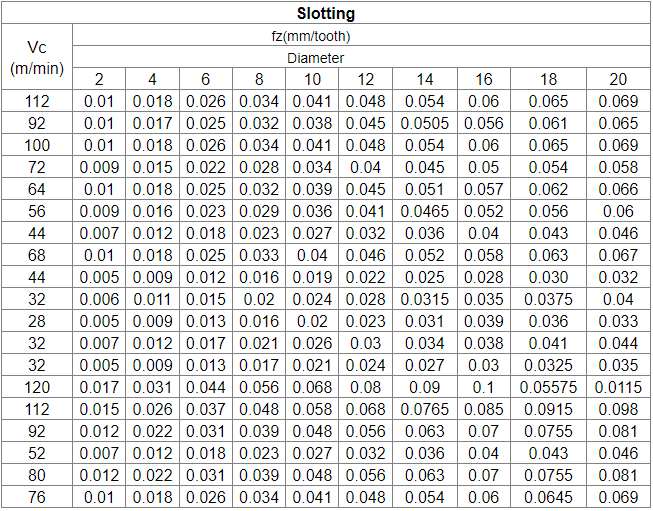

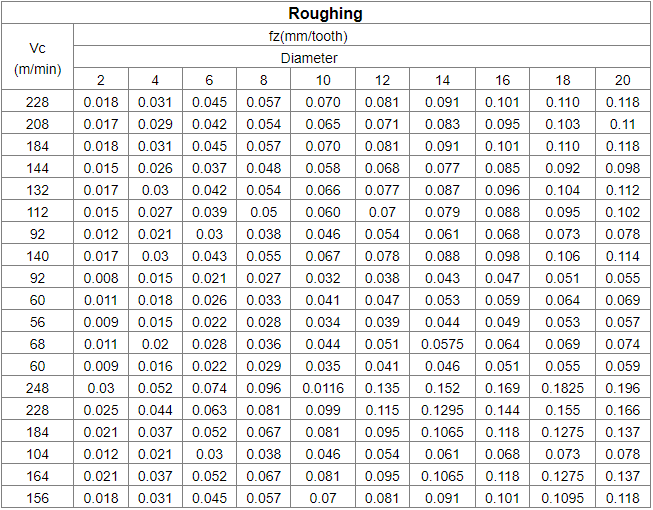

Milling Parameters:
Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
