Description:

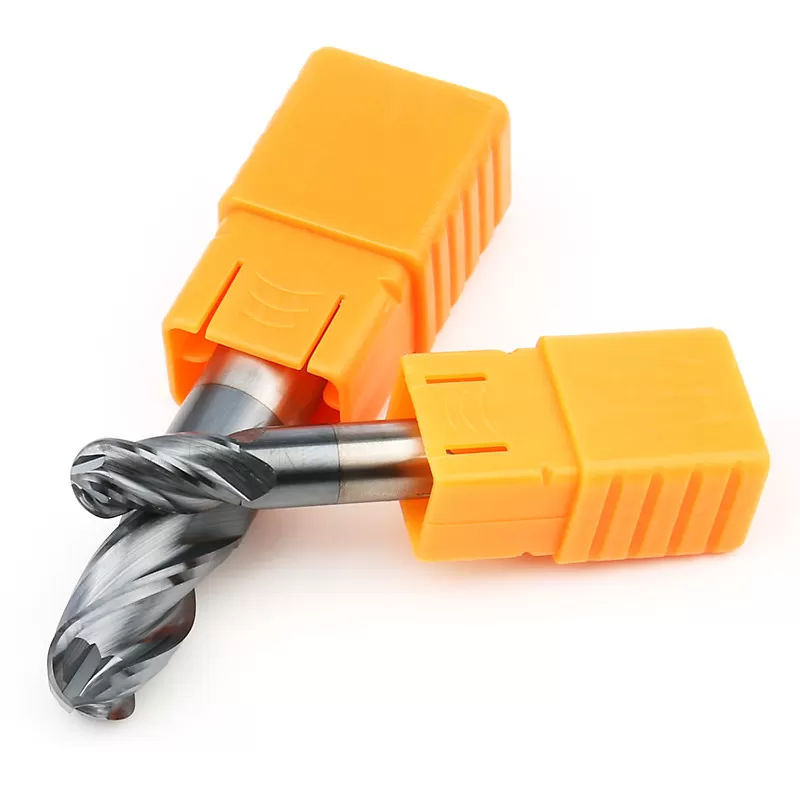

The ultra-fine tungsten steel milling cutter made of high-quality tungsten steel base material has high wear resistance and strength. It is a high gloss, high efficiency and long life aluminum milling cutter, and has better performance for difficult to machine 7-series aluminum and copper parts; Sharp three edge design, reduce cutting wear, more sharp and durable blade; The blade body is designed with a full mirror spiral pattern large chip discharge groove, which is convenient for discharging waste chips to prevent knife sticking and greatly improve production efficiency; The round and smooth handle and precise chamfering can save the time of tool replacement and greatly improve the working efficiency.

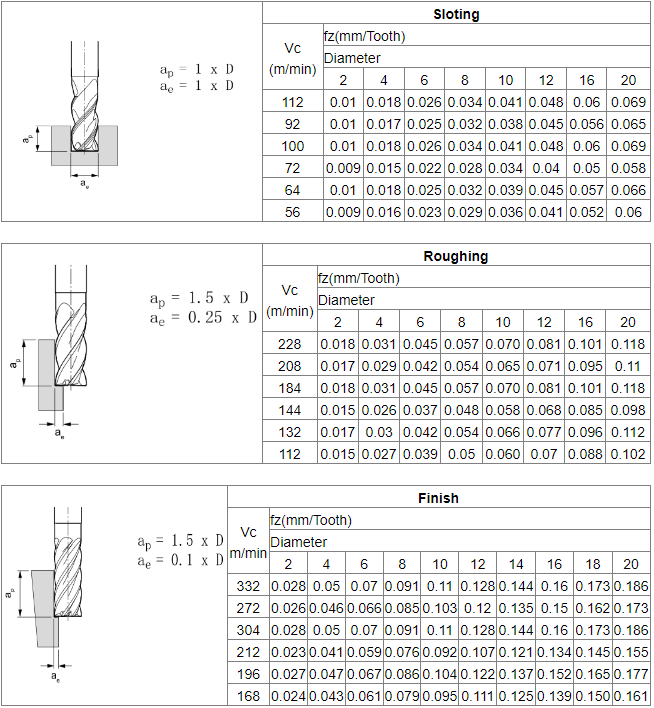

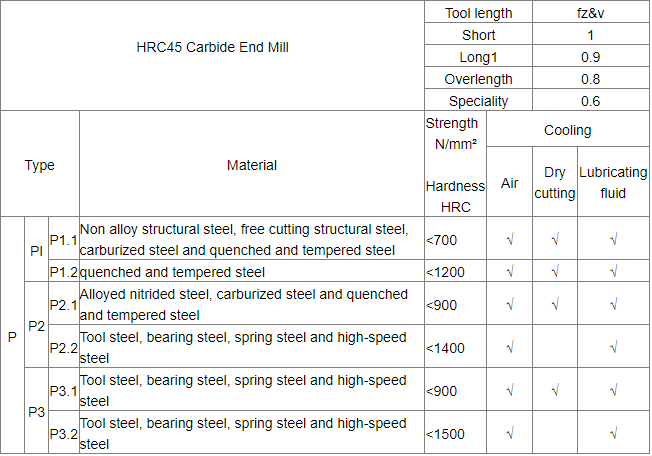

Milling parameters:
Note:

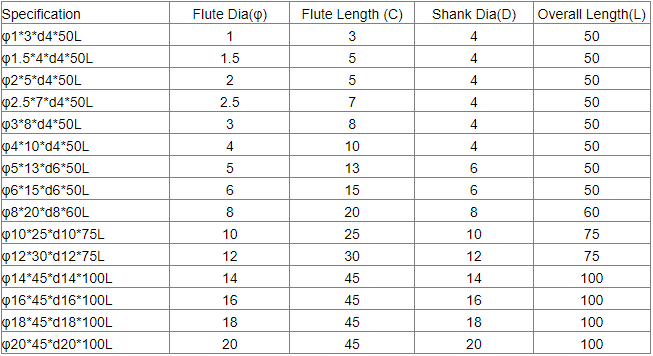

If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
