Description:

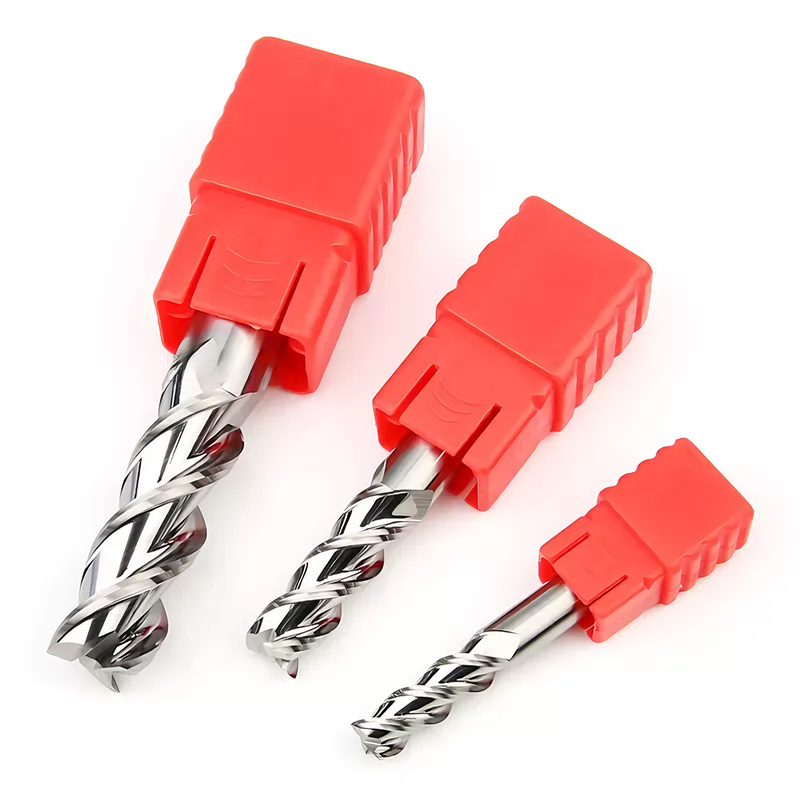

Strictly select raw materials and use modern manufacturing technology to ensure the quality specification of this flat end mill; New nano gradient composite structure coating, with ultra-high nano hardness and good film substrate bonding force; The blade is sharp, highly polished, with better impact resistance, wear resistance, and more stable large core diameter. Under the guarantee of cutting space, the design of large core diameter greatly enhances the rigidity and seismic resistance of the tool and reduces tool breakage; Wide processing range and long service life.

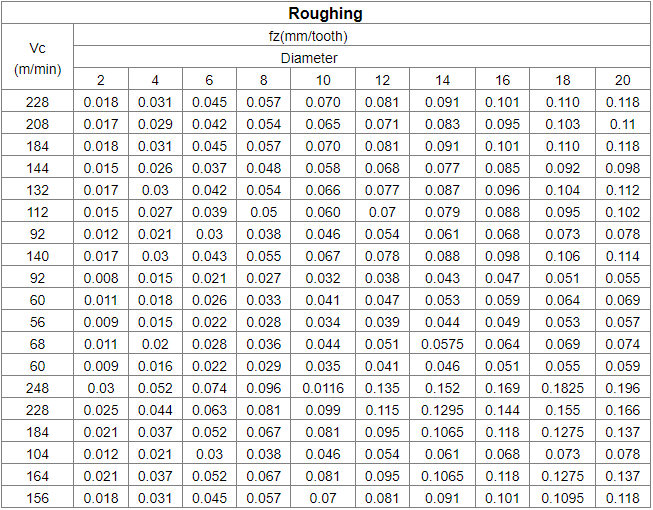

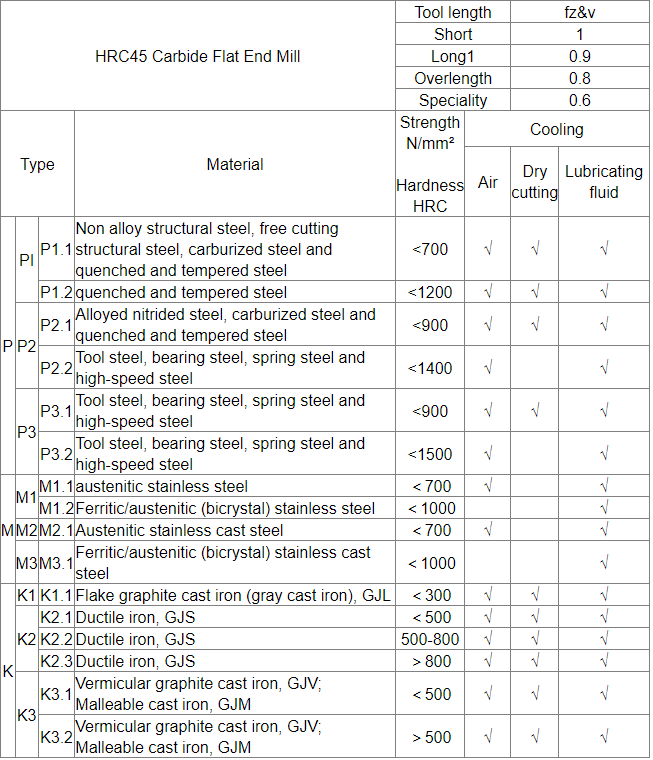

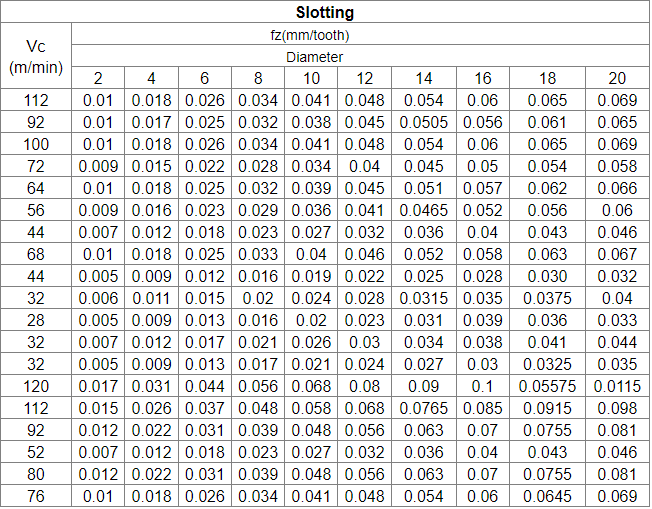

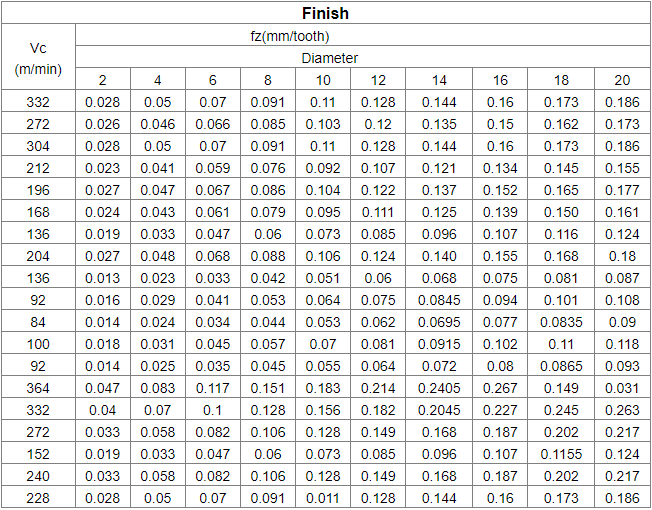

Milling Parameters:
Note:
If the following carbide flat end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions:
- Before using the carbide flat end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
