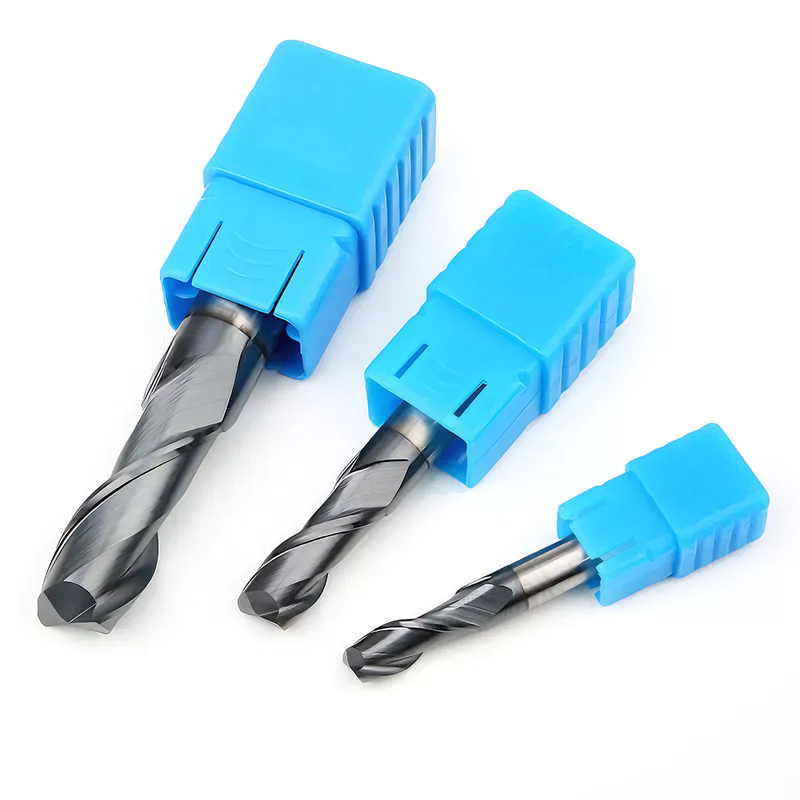

Product Description:
Flat milling cutters are important tools for many industrial and engineering applications. This flat end milling cutter is made of high-quality tungsten steel material, aiming to provide excellent performance and accuracy. Its characteristics are high hardness, sharpness and wear resistance, and good smoothness, all of which make the flat end milling cutter an excellent choice for various cutting tasks. Whether you are a professional mechanic or a DIY enthusiast, this flat end milling cutter will definitely provide you with the precise and efficient results you need.
Applications:
BWIN flat milling cutter is a professional tool used for square end flat milling cutters. This type of milling cutter is made of hard alloy material and is famous for its high hardness and wear resistance, making it very suitable for industrial use. It has a total length of 100 millimeters, 2 grooves, and a cutting depth of 3 millimeters. It has a range of models from D1 to D20 to choose from, and can be customized to meet your specific needs. The minimum order quantity for BWIN flat end milling cutters is 10 pieces per box, and the price is negotiable. It provides OEM and ODM services to meet your needs. It is also known for its fast delivery, which can be delivered within 6-14 days. With its high-quality materials and reliable performance, BWIN flat end milling cutters are the perfect choice to meet your industrial needs.
Technical Parameters:
| Product Name | HRC45 2F Flat End Mill |
| Number of Flutes | 2F |
| Shank Diameter | D4~D20 |
| Material | Carbide Square Milling Cutter |
| Cutting Depth | 3mm |
| Helix Angle | 35° |
| Coating | TiAIN |
| Flute Length | 50mm~200mm |

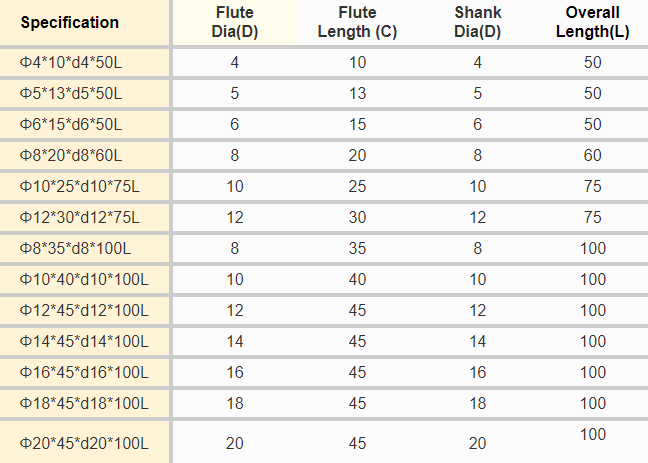

Product Model
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
