Description:
- Imported equipment for fine groove polishing, smooth and unimpeded chip removal, completely say goodbye to sticking knife to improve production efficiency
- DLC nano color coating, with high hardness, high wear resistance, stable chemical performance, enhances tool thermal conductivity, realizes efficient machining, reduces wear, and extends tool life
- The imported advanced equipment is used for fine grinding. The cutting edge of the U-shaped groove is smoother, the cutting is more rapid, the chip is discharged smoothly, and the knife sticking is refused to improve the efficiency in all directions
- Full body mirror finish polishing process, ground polishing, 35 ° chamfer highlights the details of workmanship, effectively preventing knife breakage

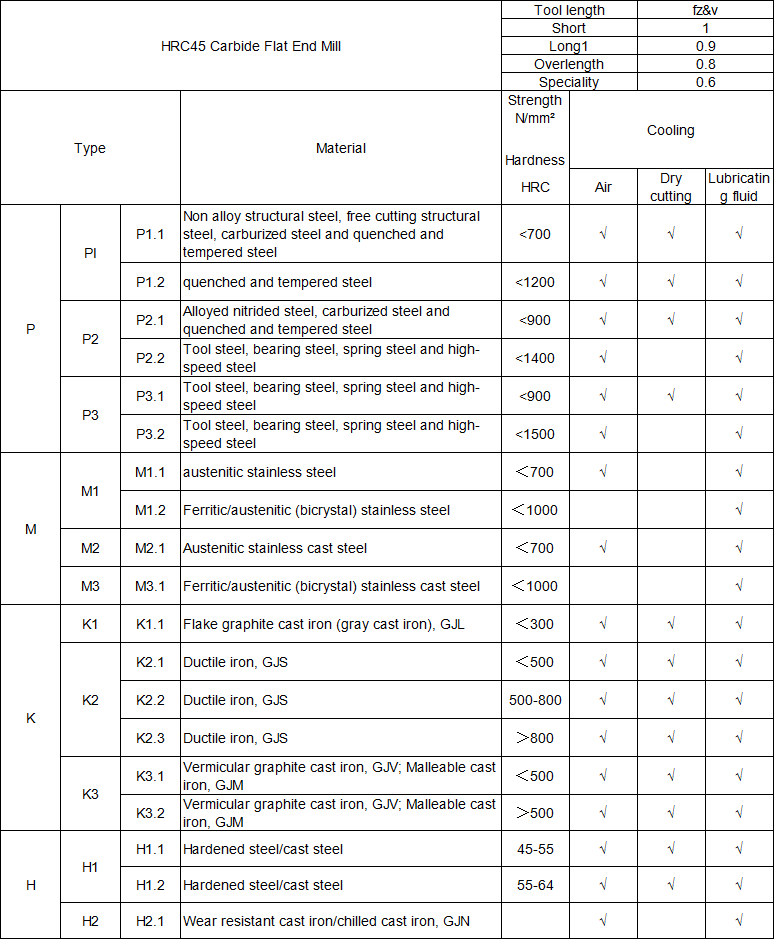

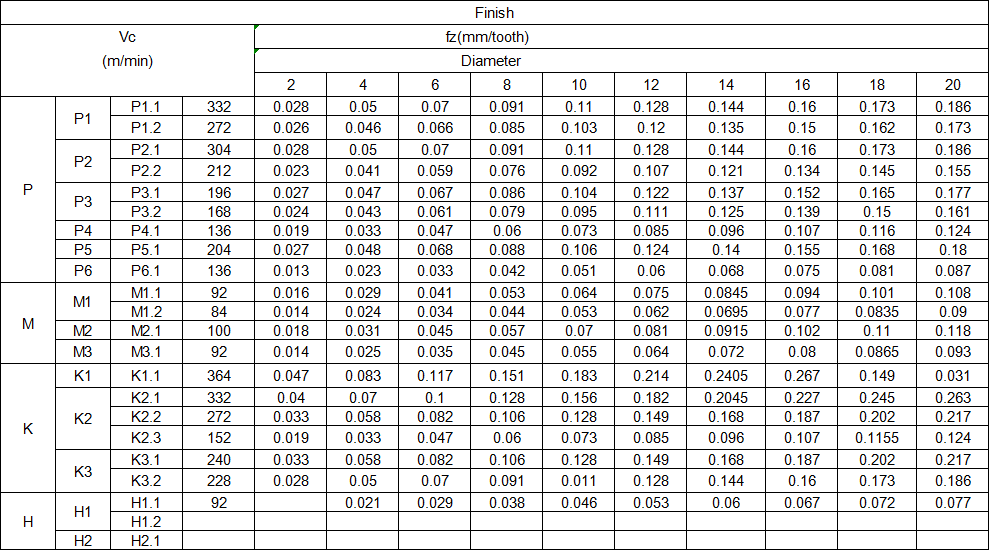

Milling Parameters:
Note:

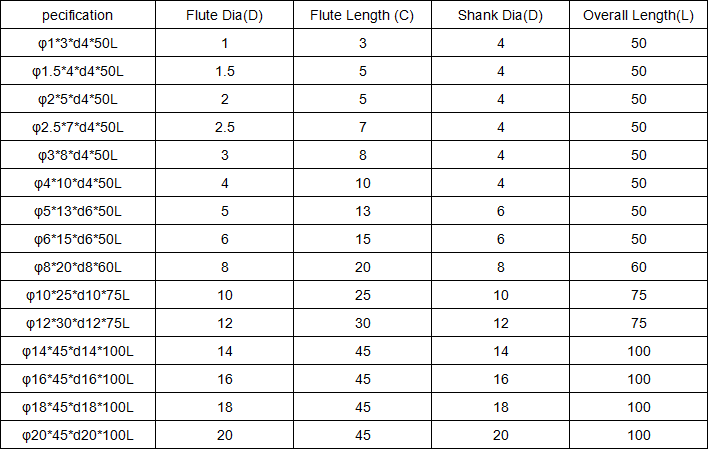

If the following carbide flat end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide flat end mill according to your needs.
Instructions:
1. Before using the carbide flat end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide flat end mill.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
