Description:

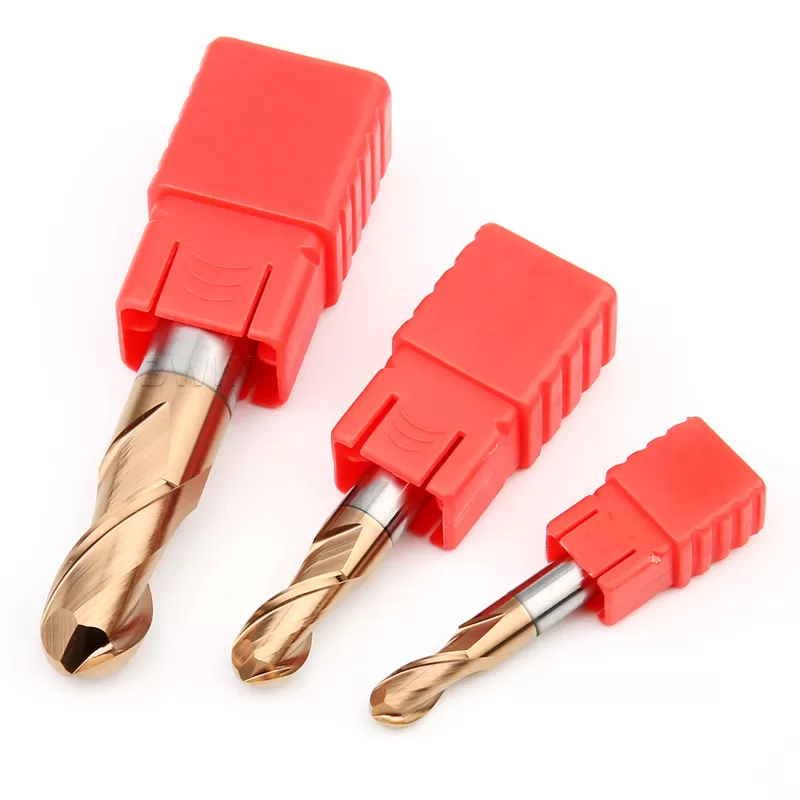

The carbide ball end milling cutter made of tungsten steel is preferred, which has higher wear resistance and stability, sufficient toughness and wear resistance, and is more durable; High precision grinding technology of imported Walter grinder, not easy to wear, long service life; The knife edge is passivated and magnified without flaws. It is not easy to have burrs and crack during processing; Nanometer coating technology, high temperature resistance and abrasion resistance, universal coating with both hardness and toughness; High capacity chip removal groove, combined with the unique new spiral design, can greatly improve the working efficiency.

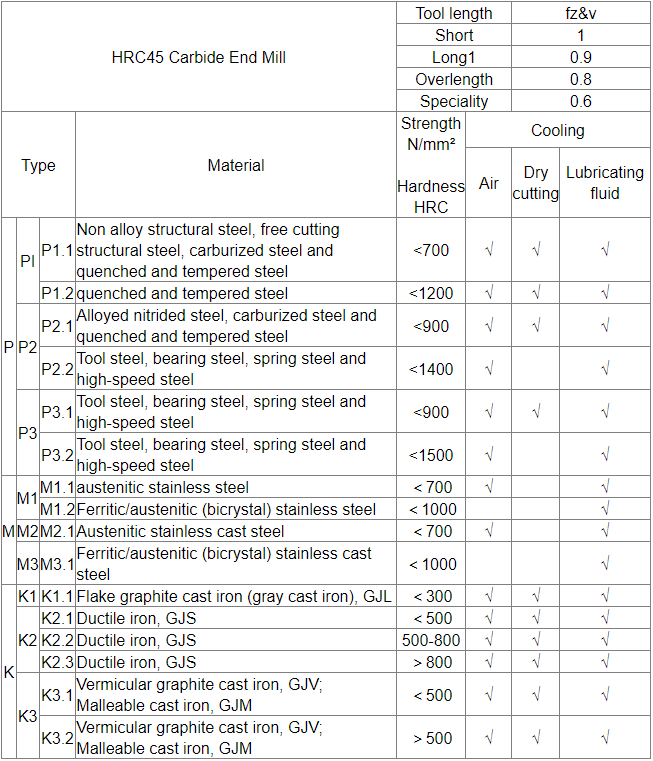

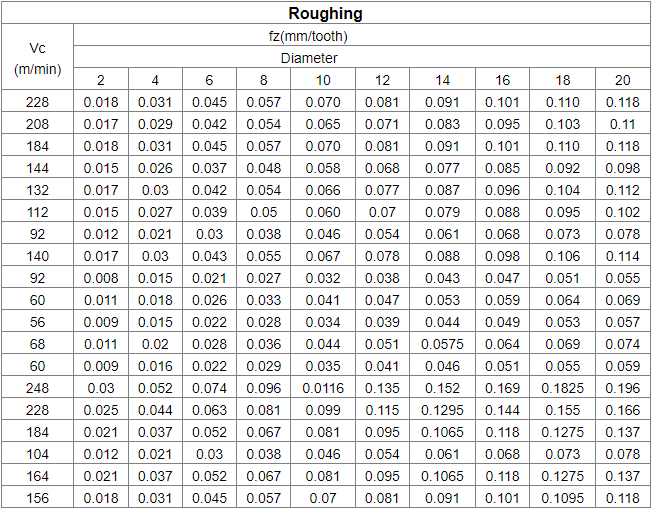

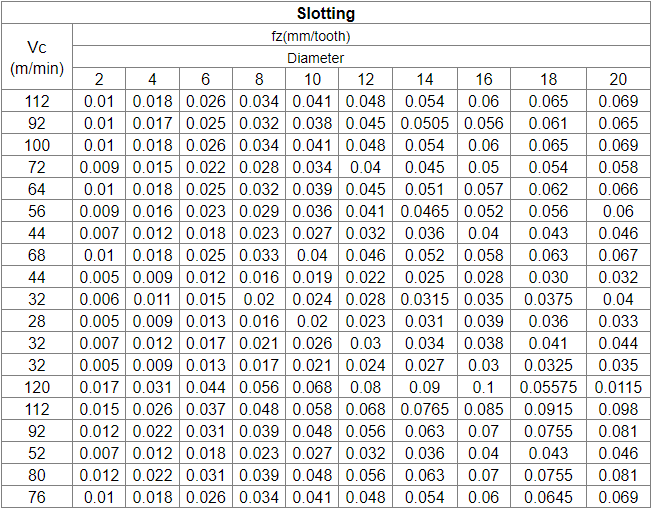

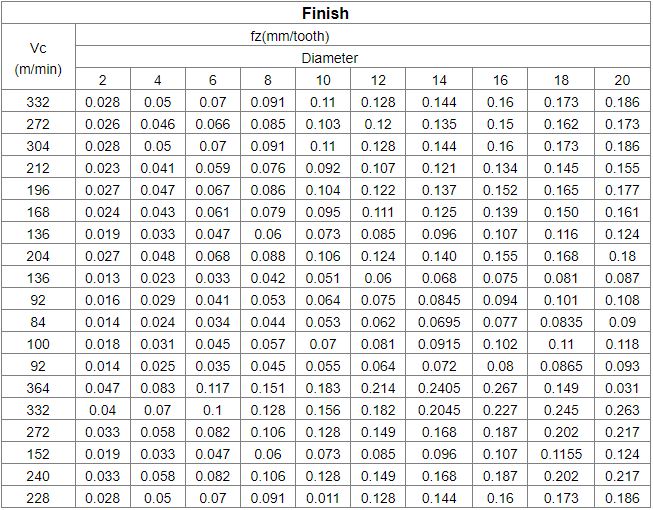

Milling Parameters:
Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
