Description:
The HRC45 corner radius endmill is made of new ultra-fine particle bar, with high rigidity and wear resistance, which provides a strong guarantee for tool service life; The unique edge design of 7 ° negative front angle takes into account the strength and sharpness of the edge. At the same time, large core diameter is adopted to enhance the rigidity of the tool, making its cutting and chip removal more stable; The design of multiple chip removal grooves, fine grinding of spiral grooves and passivation treatment can effectively avoid the risk of sticking and breaking knives and improve production efficiency; The design of universal rounded tool handle is convenient to use.

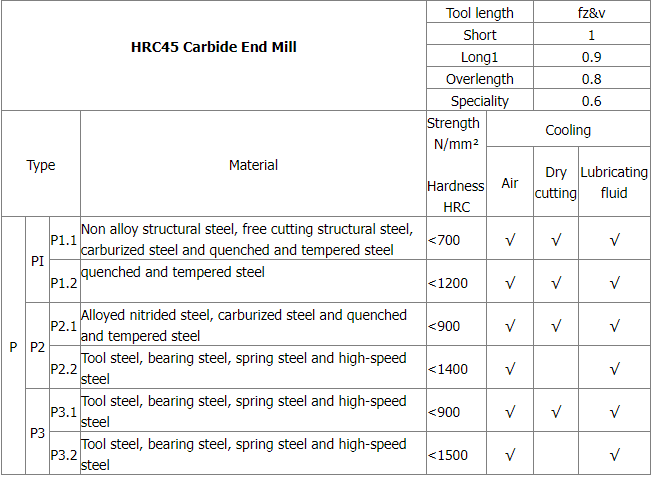

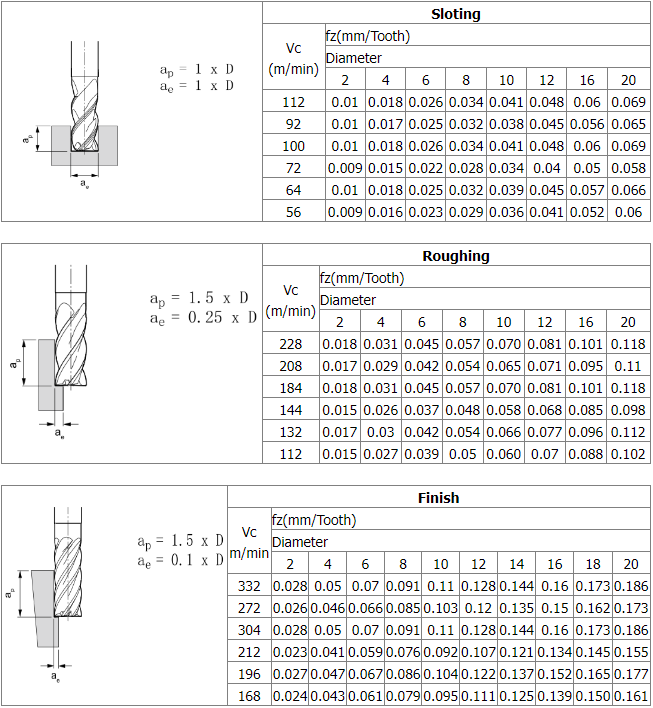

Milling parameters:
Note:
If the following carbide corner radius end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions:
- Before using the carbide corner radius end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
