Description:

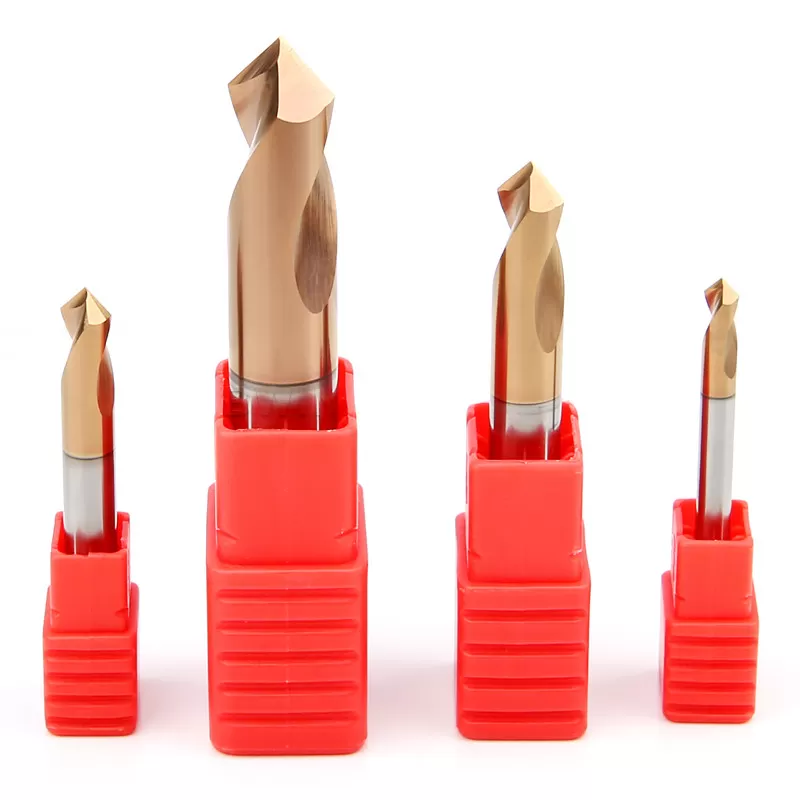

The carbide end mill Centering drill is made of the new fine particle tungsten steel base metal imported from Germany with high precision, high wear resistance and strength. It is polished with sharp edges, and is specially designed for all-purpose milling cutter with high hardness and high-speed cutting applications; The tool part is coated with ancient copper titanium silicon TATiSi coating, which can directly conduct high-speed rough machining to fine machining for heat treated materials below 50 degrees, reduce the number of tool changes and advance the machine tool efficiency, save the manufacturing time, and mainly focus on the positioning hole and center hole of steel parts; The domestic precision machine tool is used to grind out the sharp spiral edge angle, which makes the cutting smooth and greatly improves the cutting efficiency; The design of spiral chip removal groove is more conducive to removing waste chips to prevent tool sticking, greatly improving efficiency

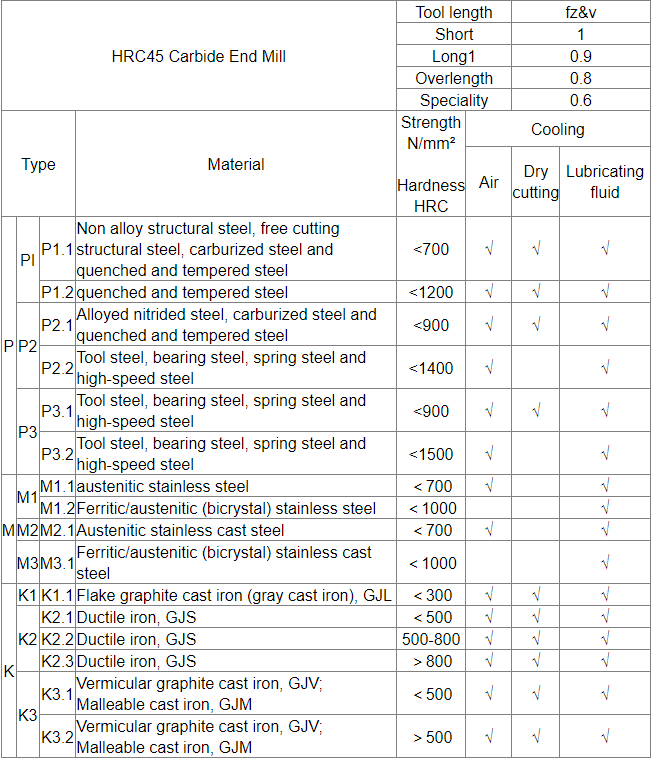

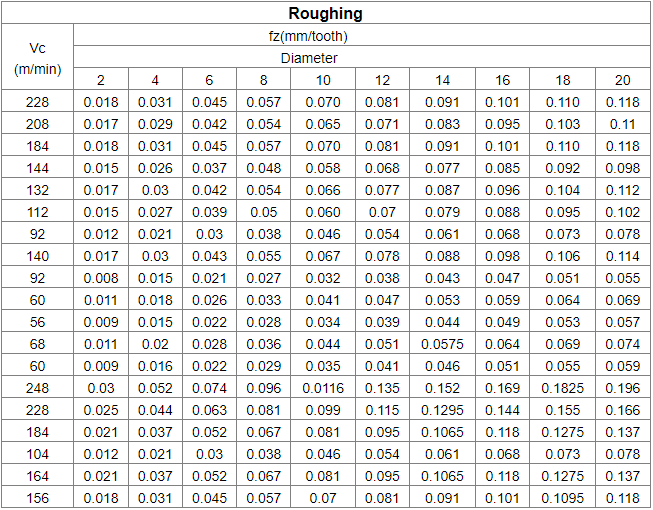

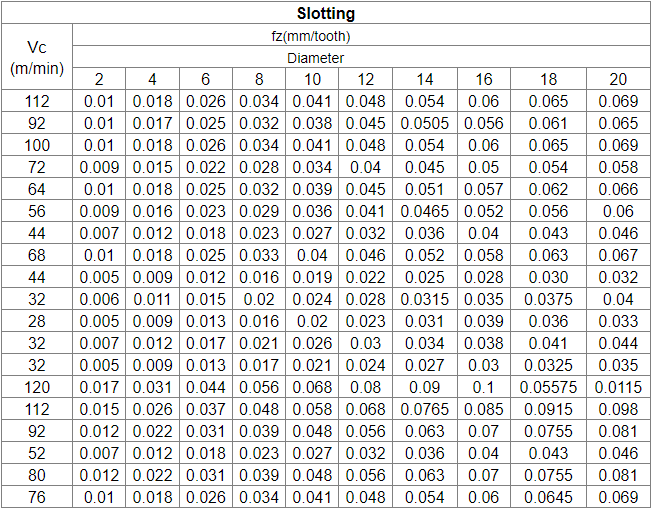

Milling Parameters:
Note:

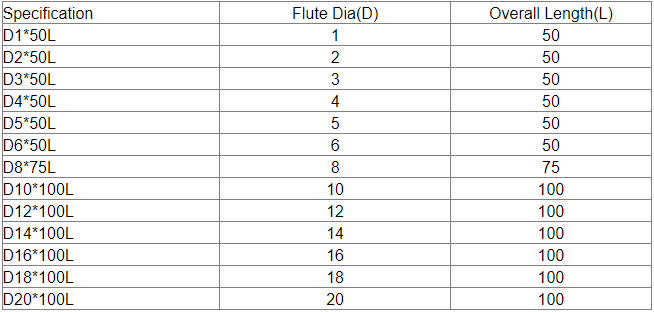

If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
