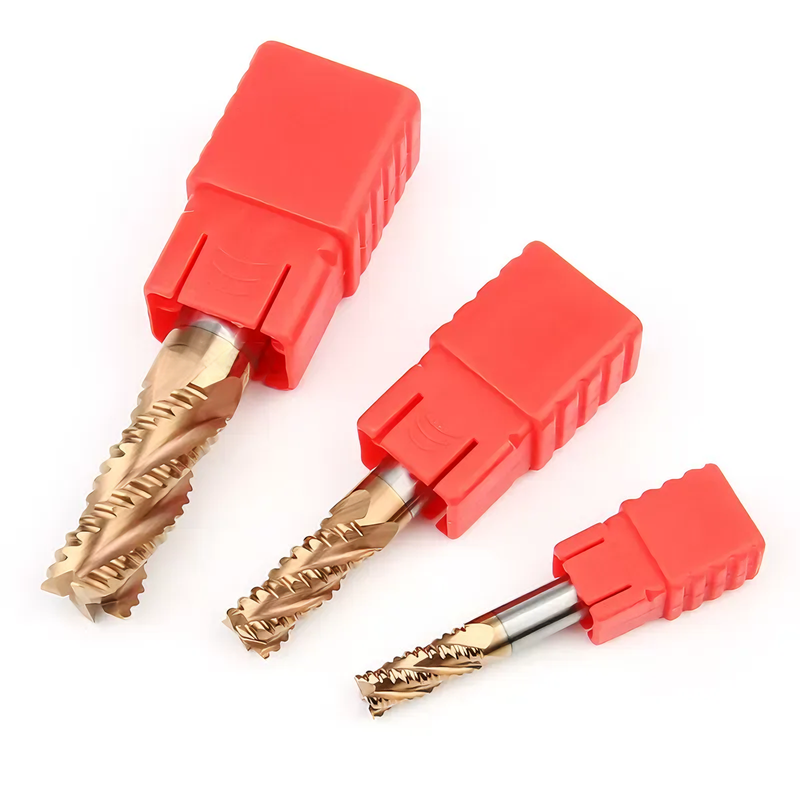

Description:
Adopting a brand new fine particle tungsten steel base material with high wear resistance and strength, imported passivation equipment to increase wear resistance, it belongs to a versatile milling cutter for high hardness and high-speed cutting applications; Carefully grinding ensures that the cutting edge of the tool is free of burrs, increasing its service life; Adopting a new U-shaped groove design to increase chip removal space, the chip removal is smoother during strong cutting, and the high-precision cutting surface is more glossy; The 35 ° helix angle makes the milling cutter more wear-resistant, reduces product burrs, and is not easy to stick to the cutter; The round and smooth handle, combined with precise chamfering, saves tool replacement time and greatly improves work efficiency.

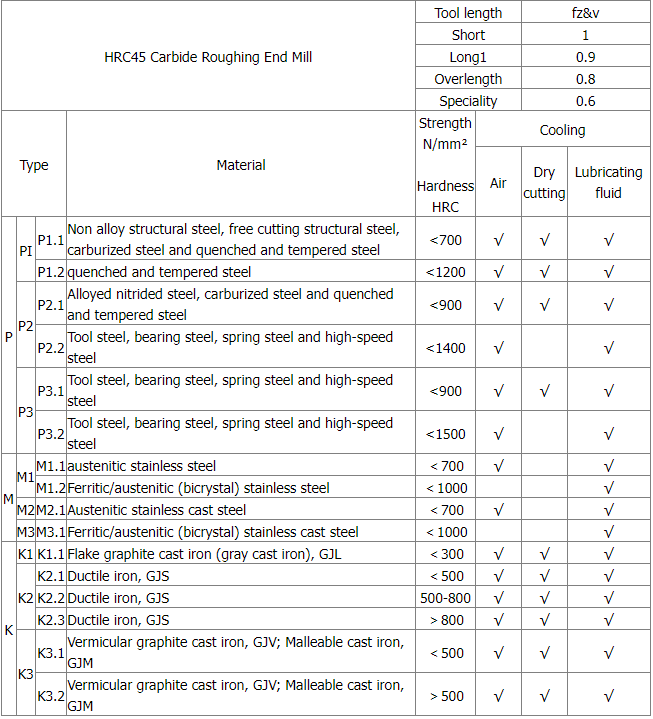

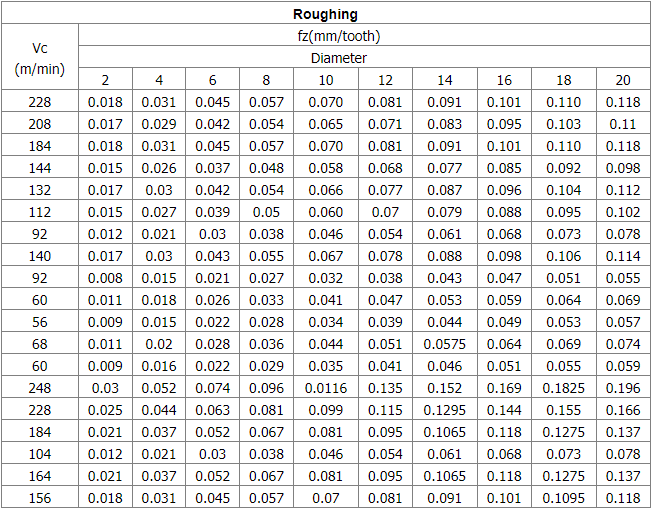

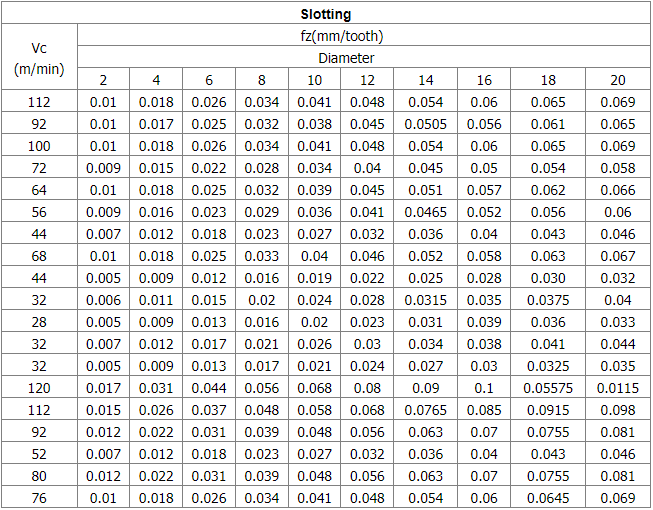

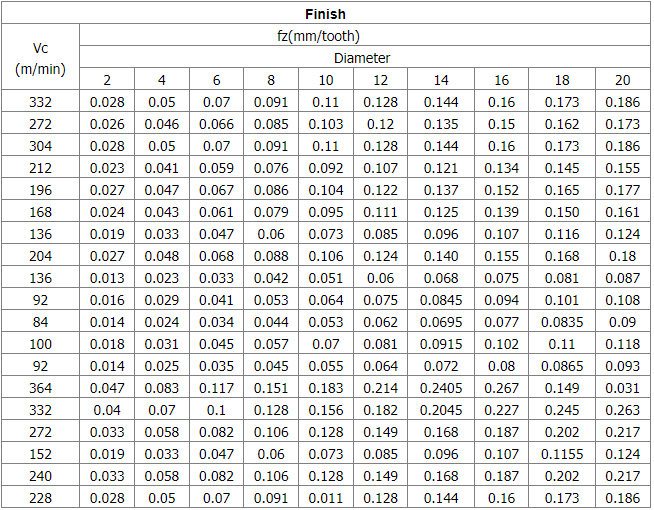

Milling Parameters:
Note:
If the following carbide roughing end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide roughing end mill according to your needs.
Instructions:
- Before using the carbide roughing end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
