Description OF Aluminium End Mill
The HRC55 aluminum deep groove milling cutter is meticulously crafted with high-quality tungsten steel base material to increase the tool’s corrosion resistance, with no burrs on the cutting edge and smooth cutting; Adopting a sharp blade angle design, greatly reducing cutting resistance, reducing friction coefficient, and extending tool service life; The design of a large chip removal groove ensures smooth chip removal without accumulation, reduces the occurrence of chip buildup, and improves processing efficiency; The chamfered layout of the handle makes clamping easier.

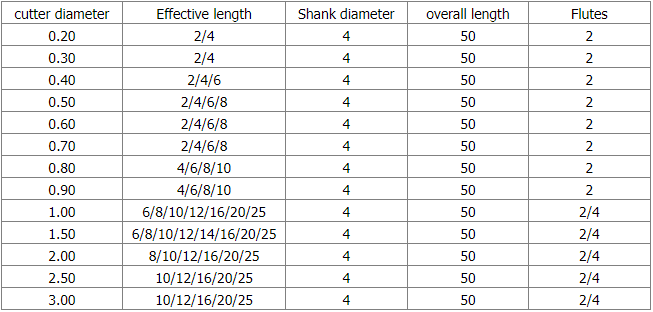

Milling parameters OF Micro Aluminium End Mill
Note OF MicroAluminium End Mill
If the following carbide micro diameter aluminum flat milling cutter cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions OF Micro Aluminium End Mill
- Before using the carbide micro diameter flat aluminum milling cutter, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide micro diameter square aluminum milling cutter.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications OF Micro Aluminium End Mill

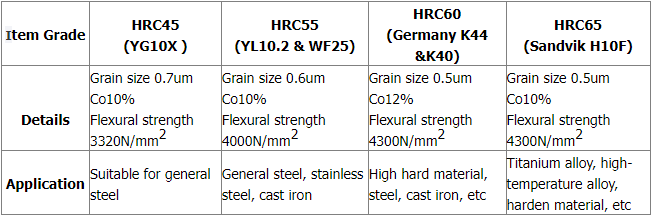

The cutting edge of the HRC55 micro diameter square aluminum end mill is covered with a bronze colored nano coating, suitable for materials within HRC55, including iron, carbon steel, cast iron, mold steel, alloy steel, tool steel, heat treated steel, and welding repair steel
