Explanation:
- Rough carbide end mill is also called wave end mill. The rough milling cutter designed for aluminum copper alloy cutting can be used for rapid processing and is suitable for rough processing. It has good processing efficiency, chip removal performance, large chip removal capacity and high metal cutting rate,
- The wave edge design of the milling cutter reduces the cutting force in the cutting process and improves the tool strength; The tool has good chip separation ability, which can effectively improve the cutting condition of the tool and increase the service life of the tool. It is suitable for rough machining of aluminum alloy sides, steps and right angle grooves.
Description:
- The coated rough carbide end mill for steel made of K44 ultrafine particle cemented carbide bars imported from Germany and ANCA CNC grinding machine manufactured in Australia, together with the German high-temperature resistant nano coating technology, can effectively improve the surface finish of the cutting part of the cemented carbide milling cutter, reduce the resistance when the chips form curls, and improve the wear resistance and use performance of the milling cutter; It can be used in the imported machining center for cutting groove chips, side chips, fine cutting, etc. Rough tooth milling cutter is suitable for processing materials: iron, carbon paste, cast iron, abrasive steel, alloy steel, tool steel, heat treatment steel and other materials; Non standard rough milling cutter can be customized according to customer needs, with timely delivery and quality assurance. Welcome to inquire and order

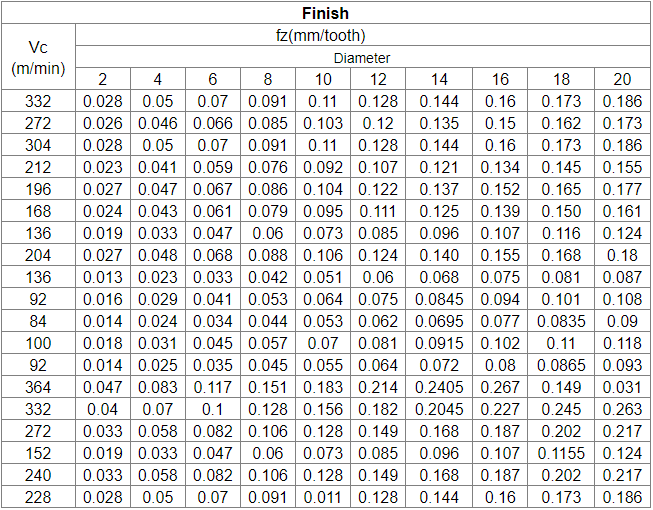

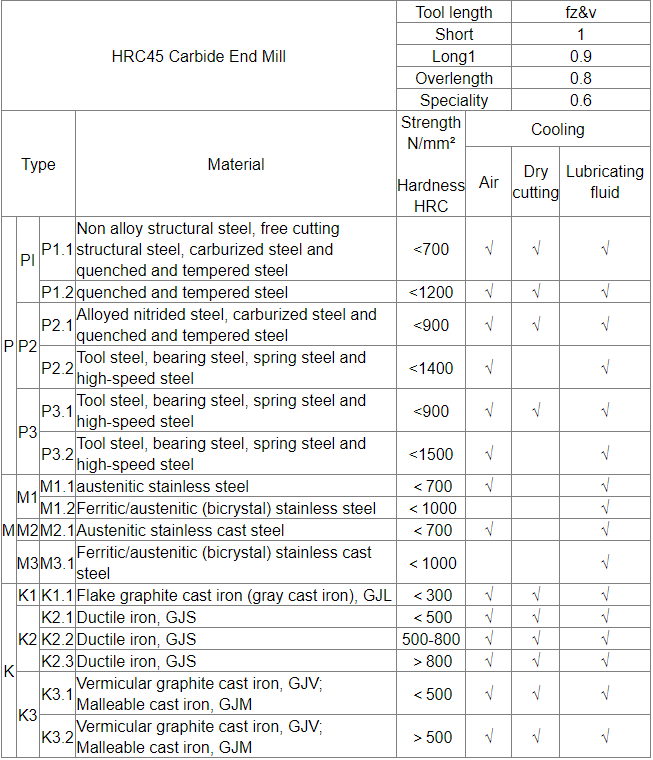

Milling Parameters:
Note:

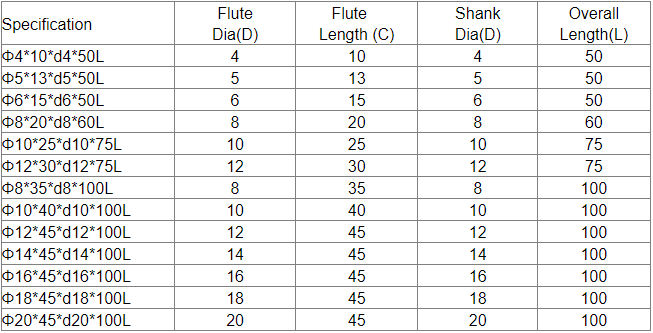

If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
