Product Description

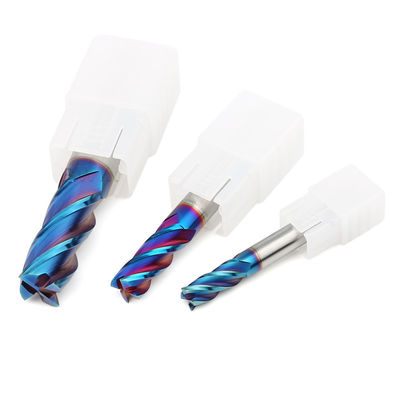

- 4 Flutes Flat End Mill Cnc HRC 65 Degree Nano Blue Coated Milling Cutter Endmill 8mm Square
- The super fine cemented carbide makes the tool wear resistance and cutting edge strength perfectly combined, and is suitable for milling super hard materials within HRC65 degrees; The coating BALINIT X, which is specially designed for cutting hard materials, is used to greatly improve the tool wear resistance; Under the condition of ensuring enough chip holding hole diameter, large core diameter is adopted, giving consideration to the rigidity of the tool and good chip removal, and strict and scientific groove type control makes the cutting and chip removal of the tool more stable.

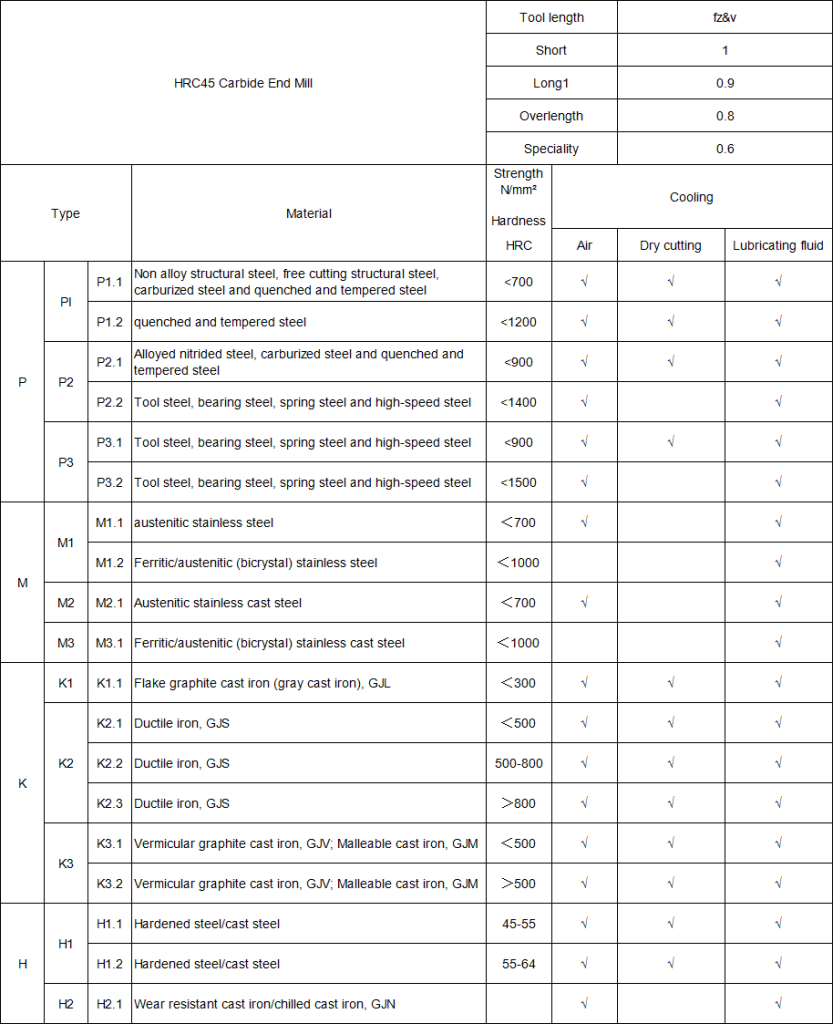

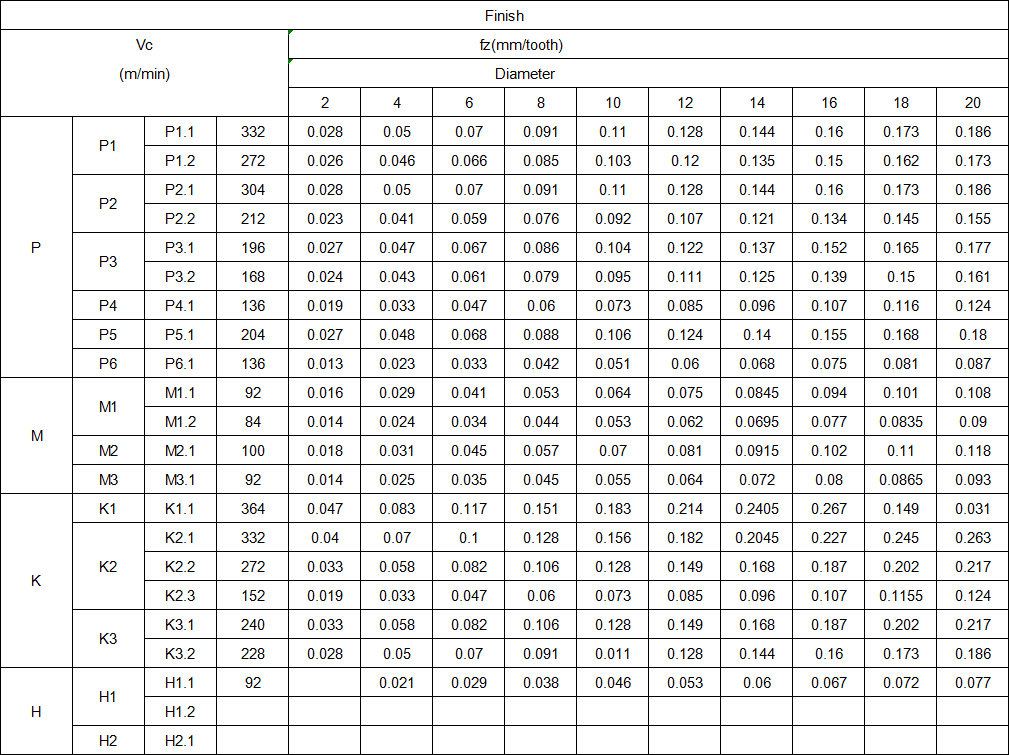

Milling Parameters:
Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
