Description:
The selected high-quality bar material and high-precision grinding process reduce vibration and prevent the flat en mill from breaking, greatly improving the service life of this flat end mill; Unequal spiral and large chip discharge groove design enable quick chip breaking and chip removal, smooth cutting, reduce burrs and not easy to stick the tool; High productivity in cutting; The large core diameter is more stable, and the large core diameter design is adopted to greatly enhance the rigidity and seismic resistance of the tool and reduce tool breakage under the guarantee of cutting capacity space; Universal chamfered round handle design, easy to use, with good compatibility.

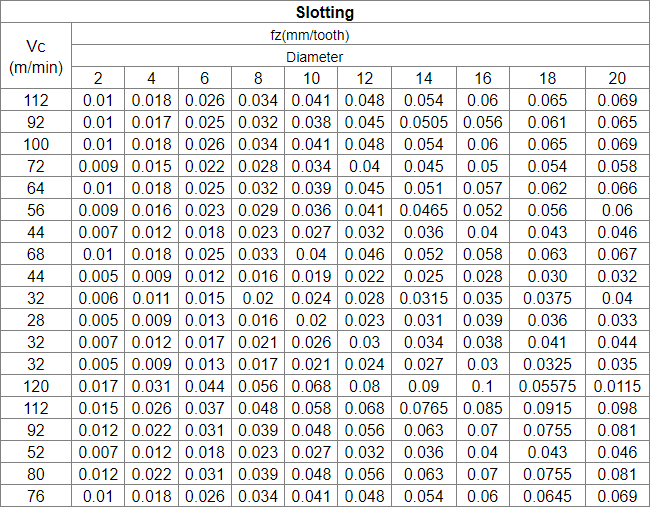

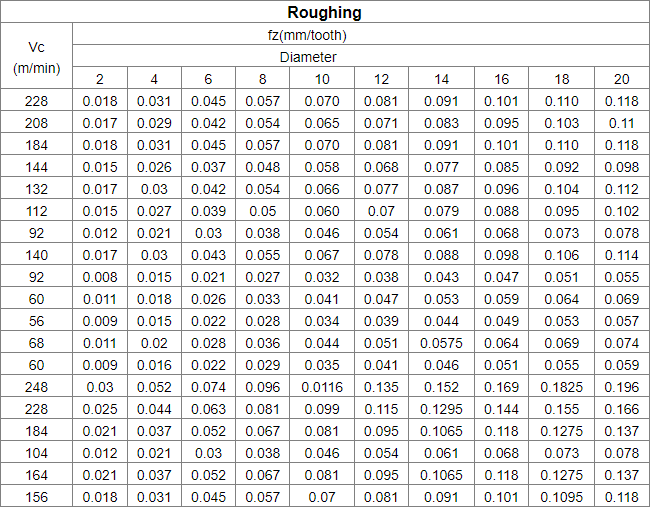

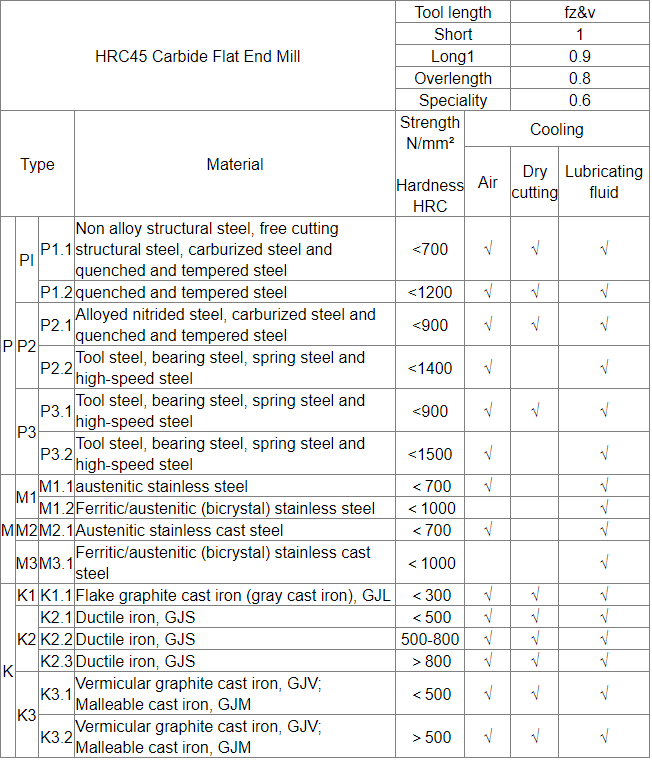

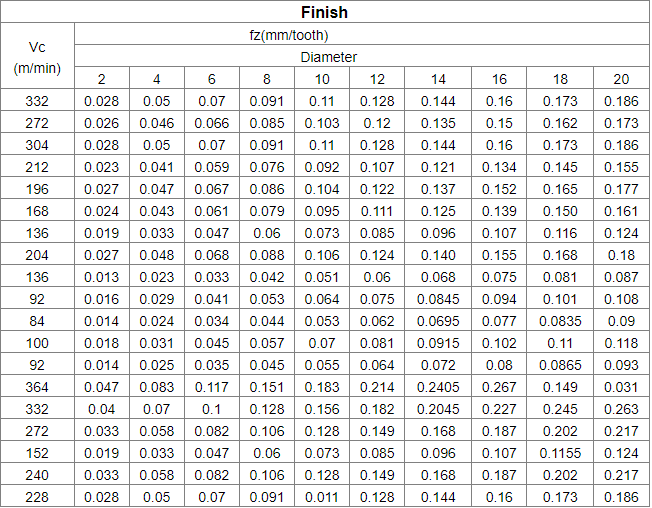

Milling Parameters:
Note:
If the following carbide flat end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions:
- Before using the carbide flat end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
