Description:

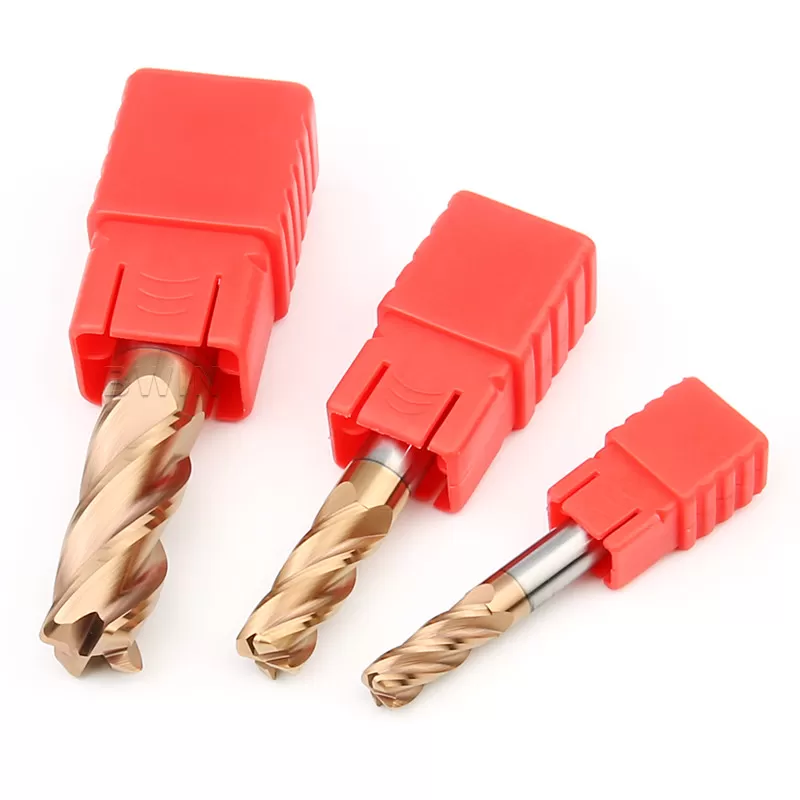

The imported 0.2UM micro particle tungsten steel base material is used, which has higher strength, hardness and wear resistance. It is a special round nose milling cutter with high hardness and high speed cutting; The nano composite coating can directly rough process to fine process the heat treated materials below 55 °, reduce the number of tool changes, and save the manufacturing aging; The design of double edge belt is compatible with the strength and sharpness of the cutting edge, which enhances the rigidity of the tool, has no burrs on the cutting edge, and extends the service life of the tool.

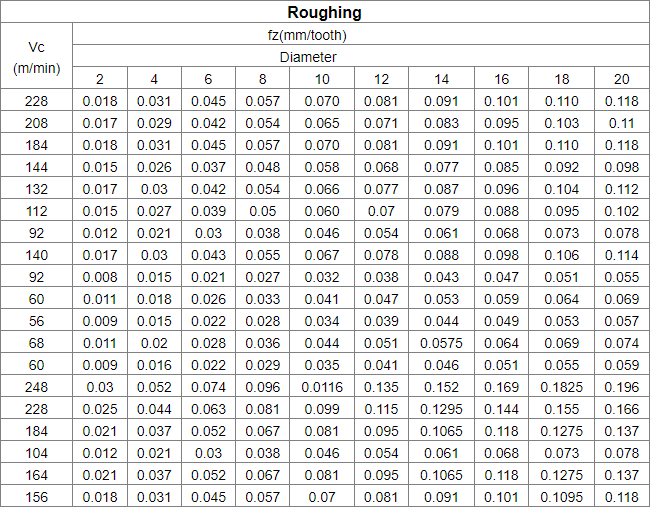

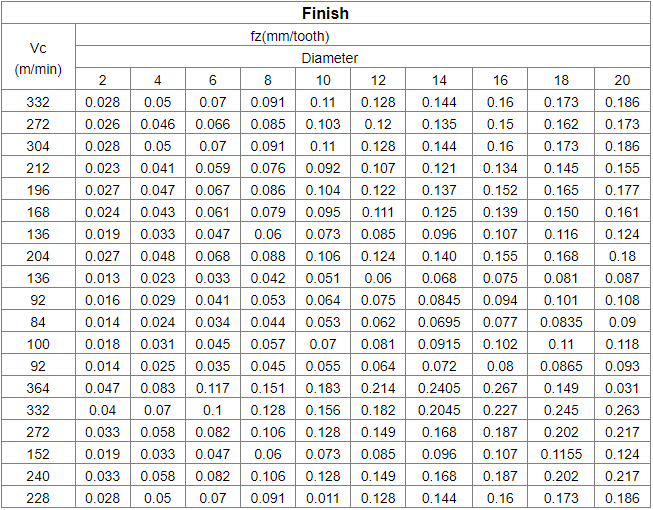

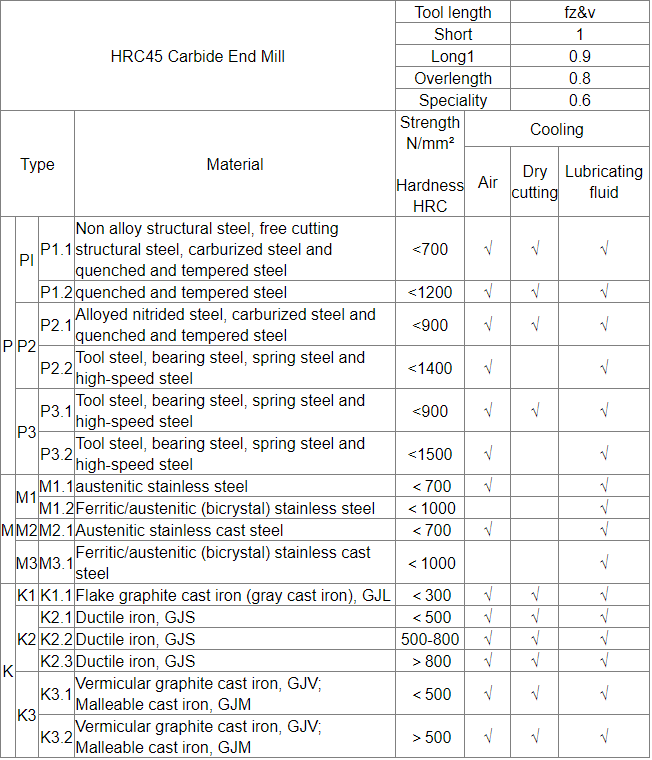

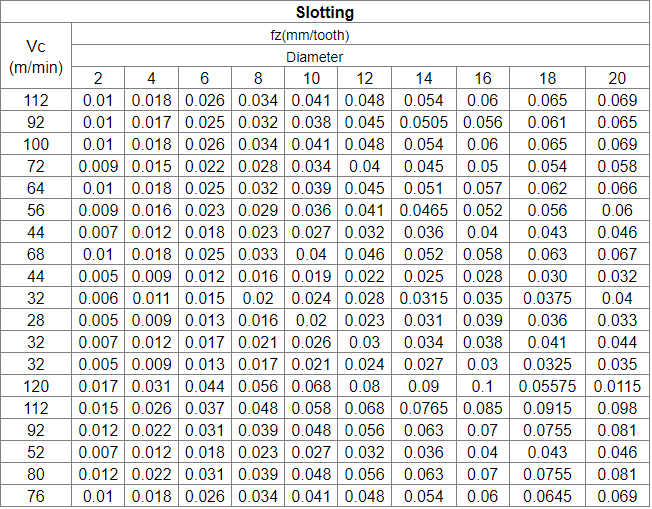

Milling Parameters:
Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
