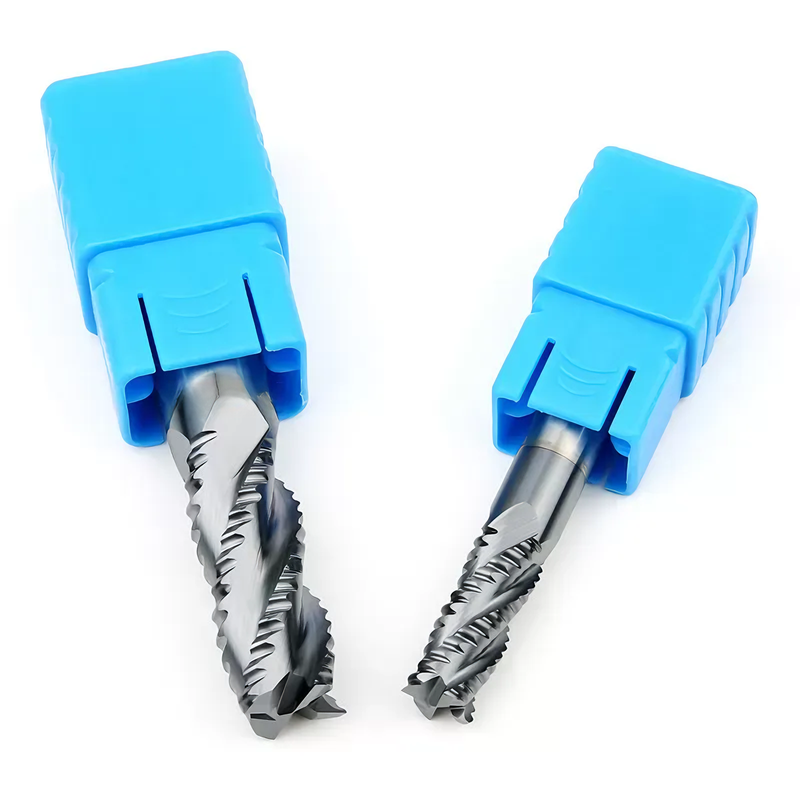

Description:
- High hardness and wear resistance: under normal temperature, the cutting materials have enough hardness, can easily cut into the workpiece, has high wear resistance, is not easy to wear, and extends the service life.
- Good heat resistance: a lot of heat is generated in the cutting process, especially when the cutting speed is high, the temperature will be higher. The milling cutter material should have good heat resistance, which can not only maintain high hardness under high temperature, but also continue to cut
- High strength and good toughness: In the cutting process, the milling cutter should bear a great impact. The milling cutter material has high strength and is not easy to break and damage. The milling cutter is also subject to impact and vibration. The material of the milling cutter has good toughness and is not easy to break.
Applicable processing materials:
Stainless steel, aluminum alloy, die steel, tool steel, carbon steel, alloy steel, cast iron, general iron materials, etc.

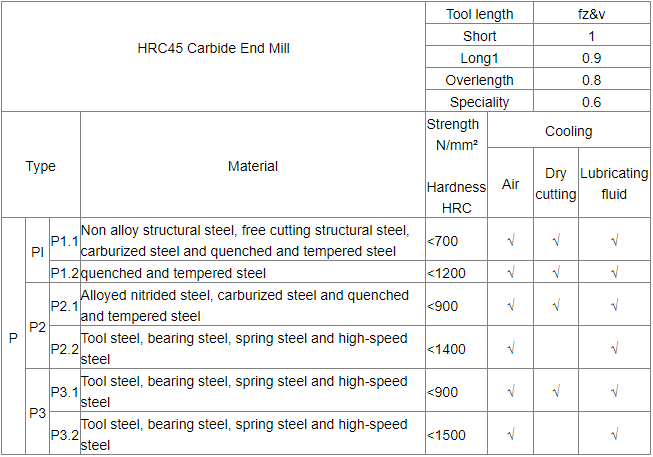

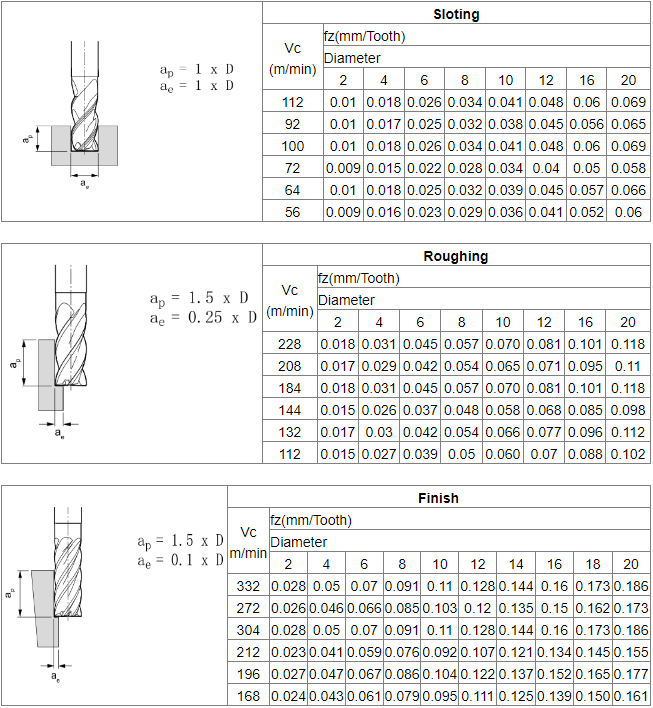

Milling parameters:
Note:

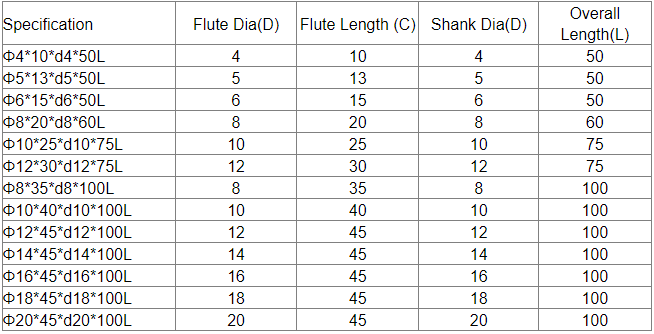

If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
