Description:
The corner radius end mill with high hardness, good wear resistance and wide application range is made by using high-quality tungsten steel cemented carbide base material, introducing advanced grinding machine equipment and German production and manufacturing technology; Double edge band milling, which increases the rigidity of the edge band, can effectively remove burrs; The unique chip holding groove shape prevents the generation of chip buildup; The round and smooth handle with precise chamfering can reduce the number of tool changes and save the production time.

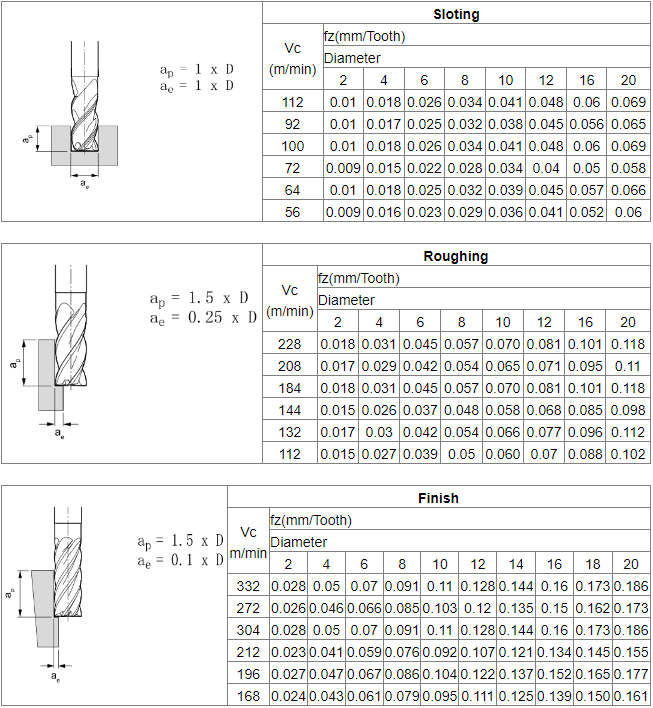

Milling parameters:
Note:

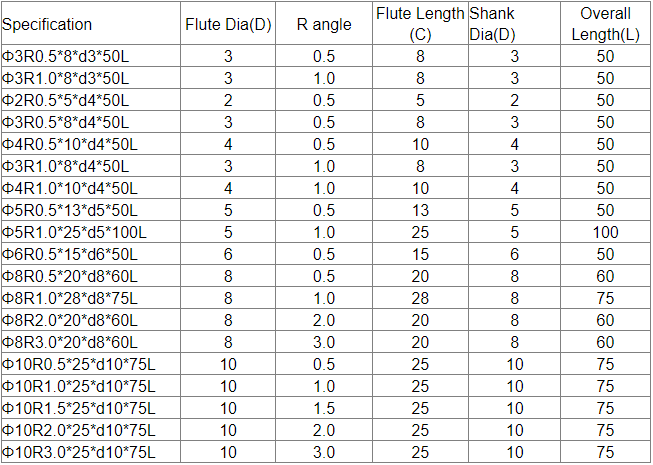

If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Instructions:
- Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
- The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
- In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
- Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
- Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
