Description:

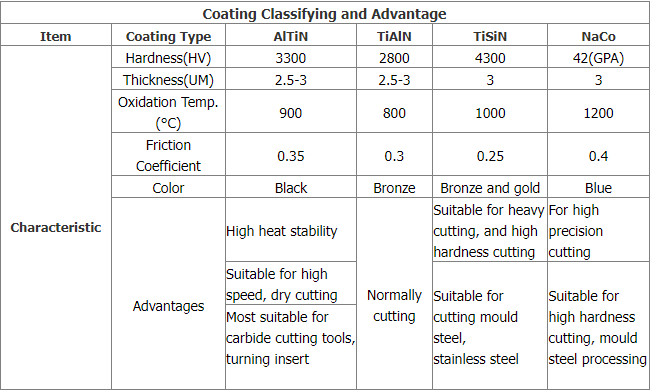

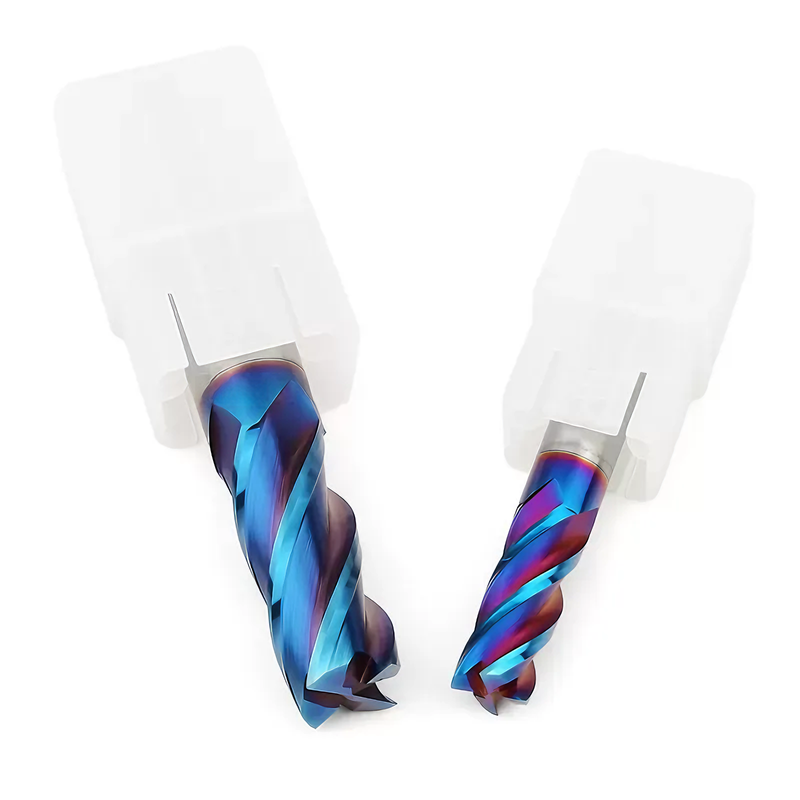

The super fine cemented carbide makes the tool wear resistance and cutting edge strength perfectly combined, and is suitable for milling super hard materials within HRC65 degrees; The coating BALINIT X, which is specially designed for cutting hard materials, is used to greatly improve the tool wear resistance; Under the condition of ensuring enough chip holding hole diameter, large core diameter is adopted, giving consideration to the rigidity of the tool and good chip removal, and strict and scientific groove type control makes the cutting and chip removal of the tool more stable.
Carbide material introdution
Note:
If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter.
Installation precautions:
- The extension length of the blade tip should be moderate and should not be too long or too short. If it is too long, it will reduce the strength of the tool holder, and if it is too short, it may cause interference.
- The installation of the cutting tool should be stable and not too tight. Long term tightening installation may damage the threads on the tool holder.
- When installing tools, the selection of tool positions should be combined with the machining process, and the order of tools should be reasonably arranged according to the process to reduce the time required for tool replacement.
- It is necessary to eliminate interference between different tool positions one by one.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and so on. General-purpose operation slotting, rilling, profiling.
