Description:
Compared with the traditional thread processing method, thread milling has great advantages in processing accuracy and efficiency, and is not limited by the thread structure and thread direction. For example, a thread milling cutter can process a variety of internal and external threads with different rotation directions. For threads that do not allow a crossover or undercut structure, it is difficult to process with traditional turning methods or tap and die, but it is very easy to achieve with CNC milling. In addition, the durability of the thread milling cutter is more than ten times or even dozens of times that of the tap. In addition, it is very convenient to adjust the thread diameter in the process of NC thread milling, which is difficult to do with the tap and die.

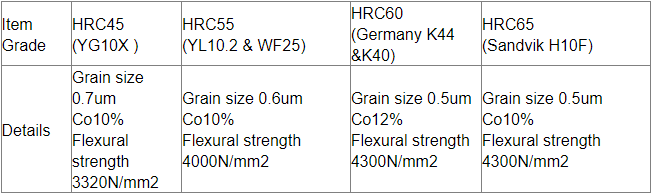

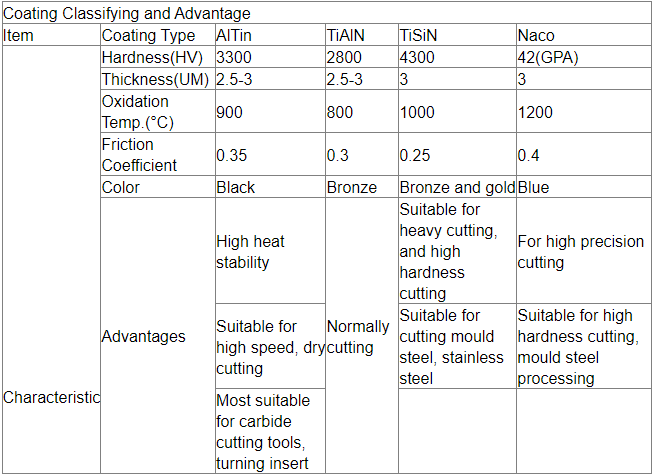

Specifications:
Notice:
Handle with care to avoid impact damage.
The loading and unloading of milling cutter should be protected with a rag to prevent hands from being injured or the cutter edge from being damaged by falling
During milling, the milling cutter shall be fully separated from the working object before starting the machine to avoid damaging the cutter due to impacting the working object
The shorter the distance between the edge of the milling cutter and the bobbin, the better to reduce the vibration of the milling cutter. The length of the cutter should not be too long
Select the correct and appropriate end milling cutter to mill the working object, and select the cutting speed and feed according to the material of the working object
When the cutting data is unclear, the feed rate (feed rate) shall be reduced for testing, and then the processing data shall be gradually corrected to achieve the ideal production effect. Do not make rapid advances to cause damage or injury to the milling cutter.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
