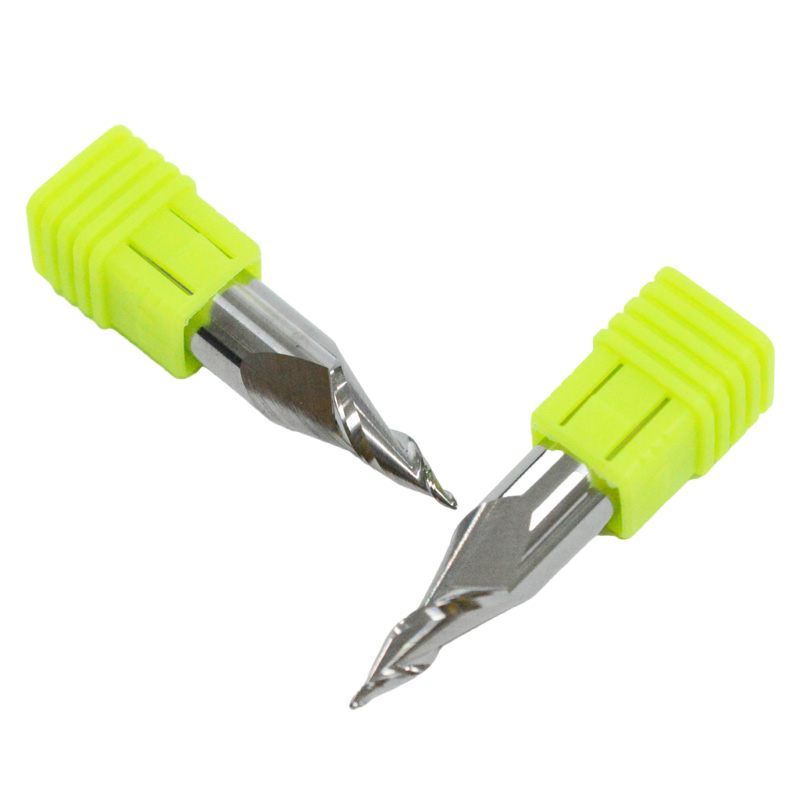

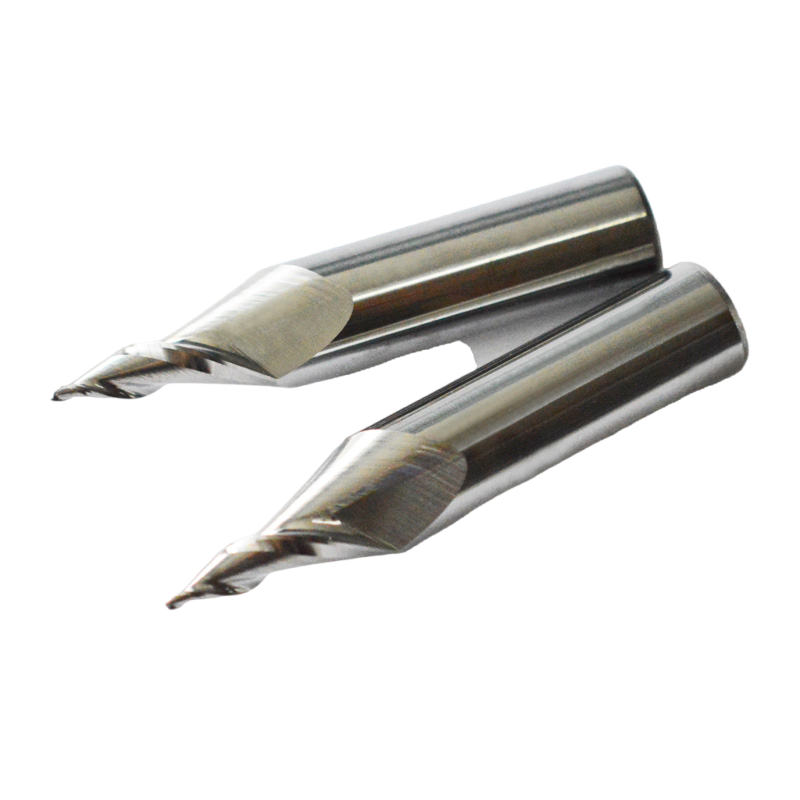

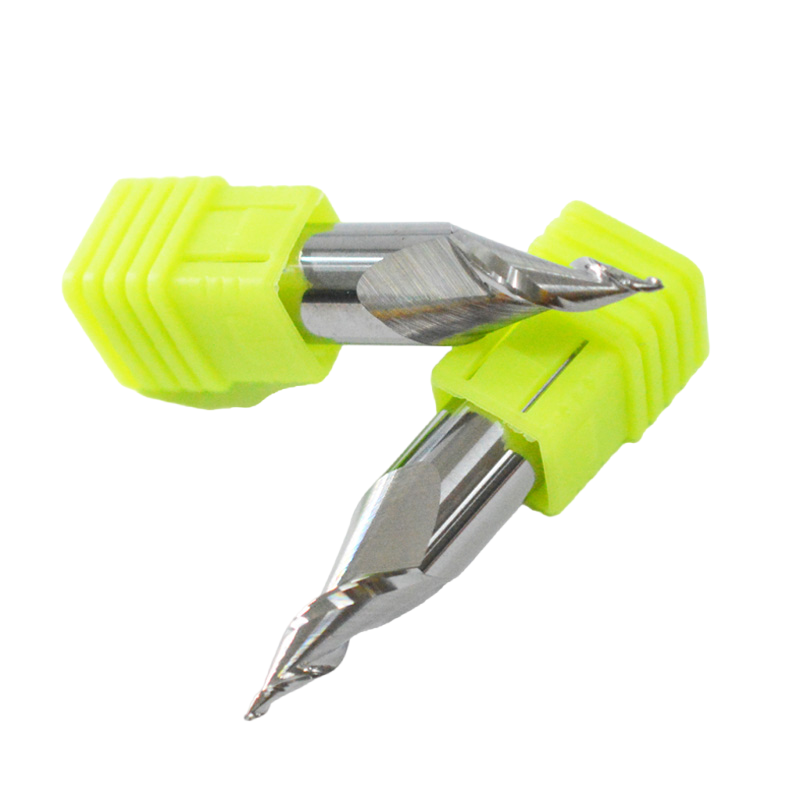

Product Name: 2 Flute Taper Engraving Bits for Mini Words, Luminous Words
Product Parameters:
- Brand name: NSM
- Place of origin: Guangdong of China
- Grade: WAT450
- Raw material: Solid carbide
- Grain Size: Micro grain 0.6μ
- Type: Tapered shank engraving bits
- Flute: 2 Flute
- Tip angle: 28/30 degrees
- Tip Diameter: 1mm
- Shank: 6/12mm
- Coating/Coverage: Uncoated/TiSiN
- Precision: High precision
- HRC: for below 45HRC work material
- Controlling mode: cnc Engraving machines
- Work material: Acrylic, PVC
Features:
Application: Resin, acrylic and other materials,use for mini word , luminous word processing. Recommended processing parameters: spindle speed 20000-24000 rpm, feed speed 3-6m / min according to different specifications
Specifications:
| SHK | ANGLE | CEL | CED | OVL |
| 12 | 30 | 22 | 1 | 55 |
| 12 | 28 | 23 | 1 | 55 |
| 6×12 | 30 | 22 | 1 | 55 |
| 14 | 30 | 25 | 1 | 65 |
| 12 | 30 | 22 | 1 | 65 |
| 12 | 28 | 23 | 1 | 65 |
| 12 | 30 | 22 | 1 | 65 |
| 12 | 28 | 23 | 1 | 65 |
| 6×12 | 30 | 22 | 1 | 55 |
| 14 | 30 | 25 | 1 | 65 |
